Connecting the flash card on the Mezzanine storage
controller
Connect the flash card on the Mezzanine storage controller to the supercapacitor as shown in Figure
175.

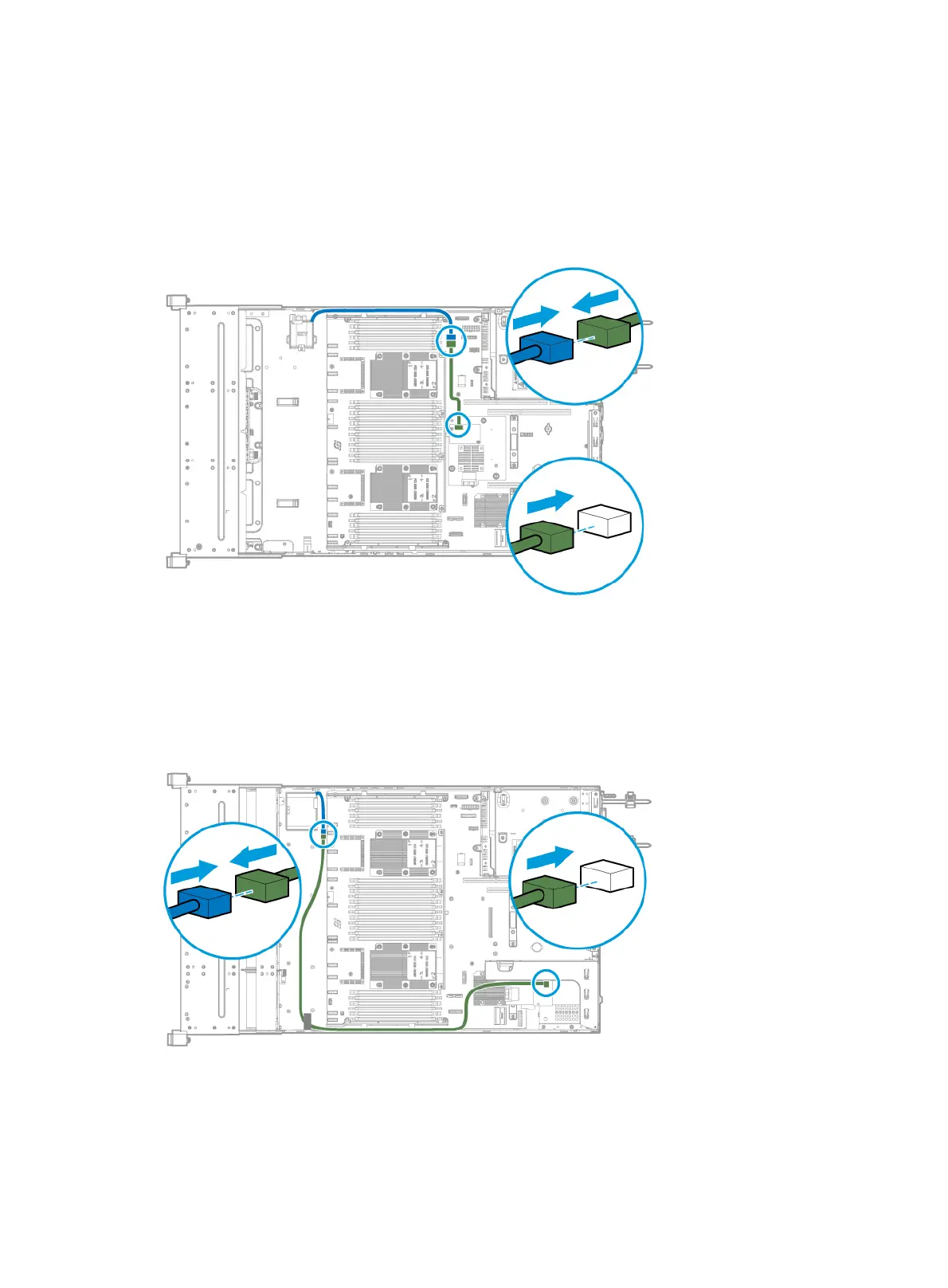

Figure 175 Connecting the flash card on the Mezzanine storage controller
Connecting the flash card on a standard storage controller
The cabling method is the same for standard storage controllers in PCIe slots 1, 2, 6, and 8. Figure
176 uses slot 1 to show the cabling method.
Figure 176 Connecting the flash card on a standard storage controller
Connecting the power cord of a GPU module
The GPU-M60-1-X GPU module requires a power cord for connecting to the power port on the riser
card.
