112

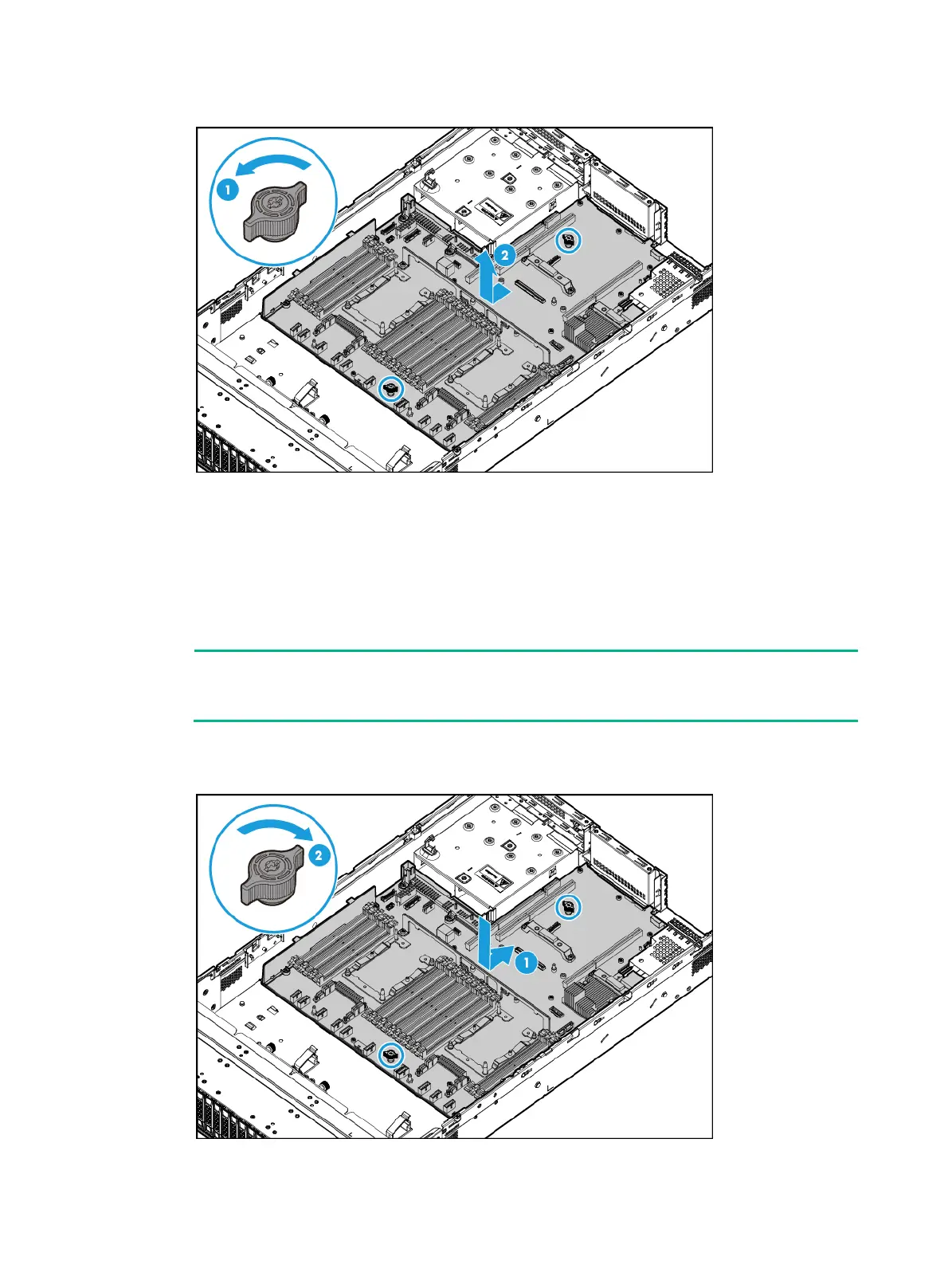

Figure 148 Removing the system board
Installing the system board
1. Hold the system board by its handle and slowly place the system board in the chassis. Then,
slide the system board toward the server rear until the connectors (for example, USB
connectors and the Ethernet port) on it are securely seated, as shown by callout 1 in Figure
149.
NOTE:
The connectors are securely seated if you cannot use the system board handle to lift the system
board.
2. Fasten the two captive screws on the system board, as shown by callout 2 in Figure 149.
Figure 149 Installing the system board
