90

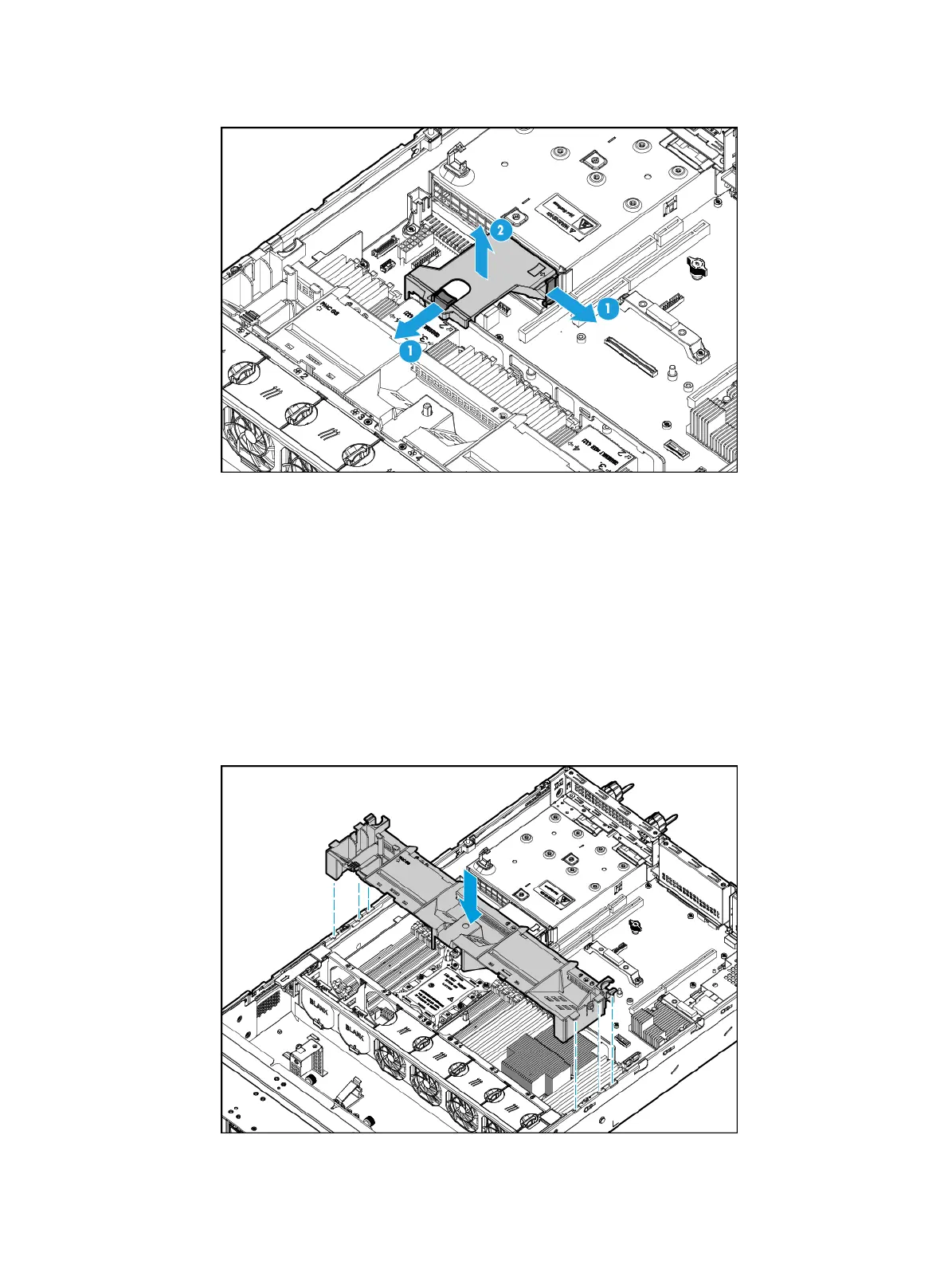

Figure 123 Removing the power supply air baffle
Installing air baffles
1. If you are to install a new P100 chassis air baffle, remove the support bracket on the air baffle as
needed for GPU installation. For more information, see "Installing GPU modules."
2. Install air baff
les:
{ To install the chassis air baffle, place the air baffle on top of the chassis, with the standouts
at both ends of the air baffle aligned with the notches on the chassis edges, as shown
in Figure 124.
The install
ation procedure is the same for the standard chassis air baffle and the P100
chassis air baffle. The following figure uses the standard chassis air baffle for illustration.
Figure 124 Installing the standard chassis air baffle
