Installing a UIS-RC-GPU/FHHL-2U-G3-F riser card and a
PCIe module
1. Power off the server. For more information, see "Powering off the server."
2. Remove the server from the rack. For more information, see "Removing the server from a rack."
3. Remove the
access panel. For more information, see "Removing the access panel."
4. Remove the
PCIe riser card blank from PCIe riser connector 3, as shown in Figure 71.
5. Install the PCIe module on
the riser card:

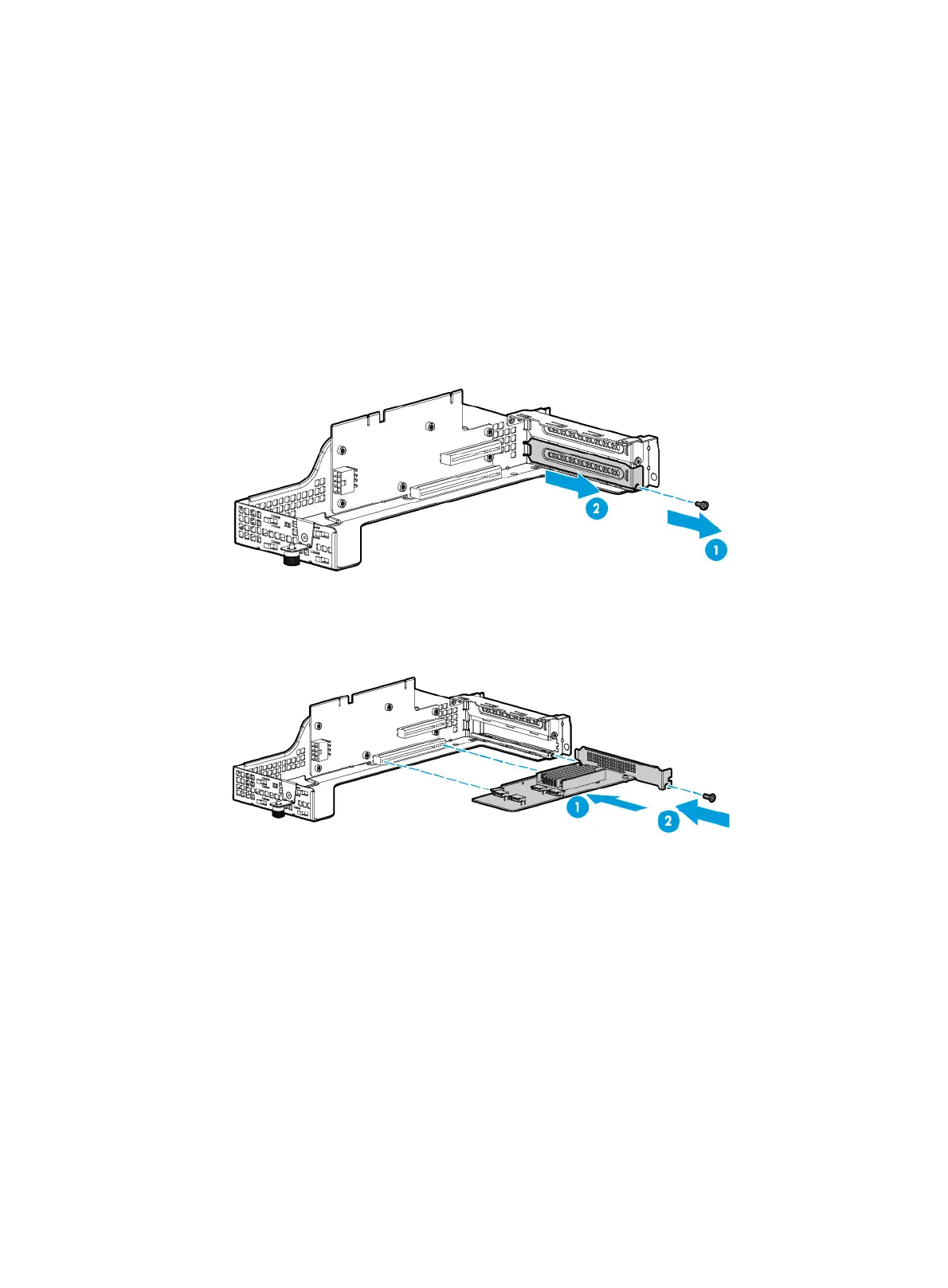

a. Remove the screw on the PCIe module blank in the target PCIe slot, and then pull the blank
out of the slot, as shown in Figure 81.
Figure 81
Removing the PCIe module blank
b. Insert the PCIe module into the slot along the guide rails and use the screw to secure it into
place, as shown in Figure 82.
Figure 82
Installing the PCIe module
6. Install the riser card bracket and use its screws to secure it into place, as shown in Figure 74.
7. Insert the riser card in PCIe riser connector 3 and fasten the captive screw to the chassis air
baffle, as shown in Figure 83.
