54

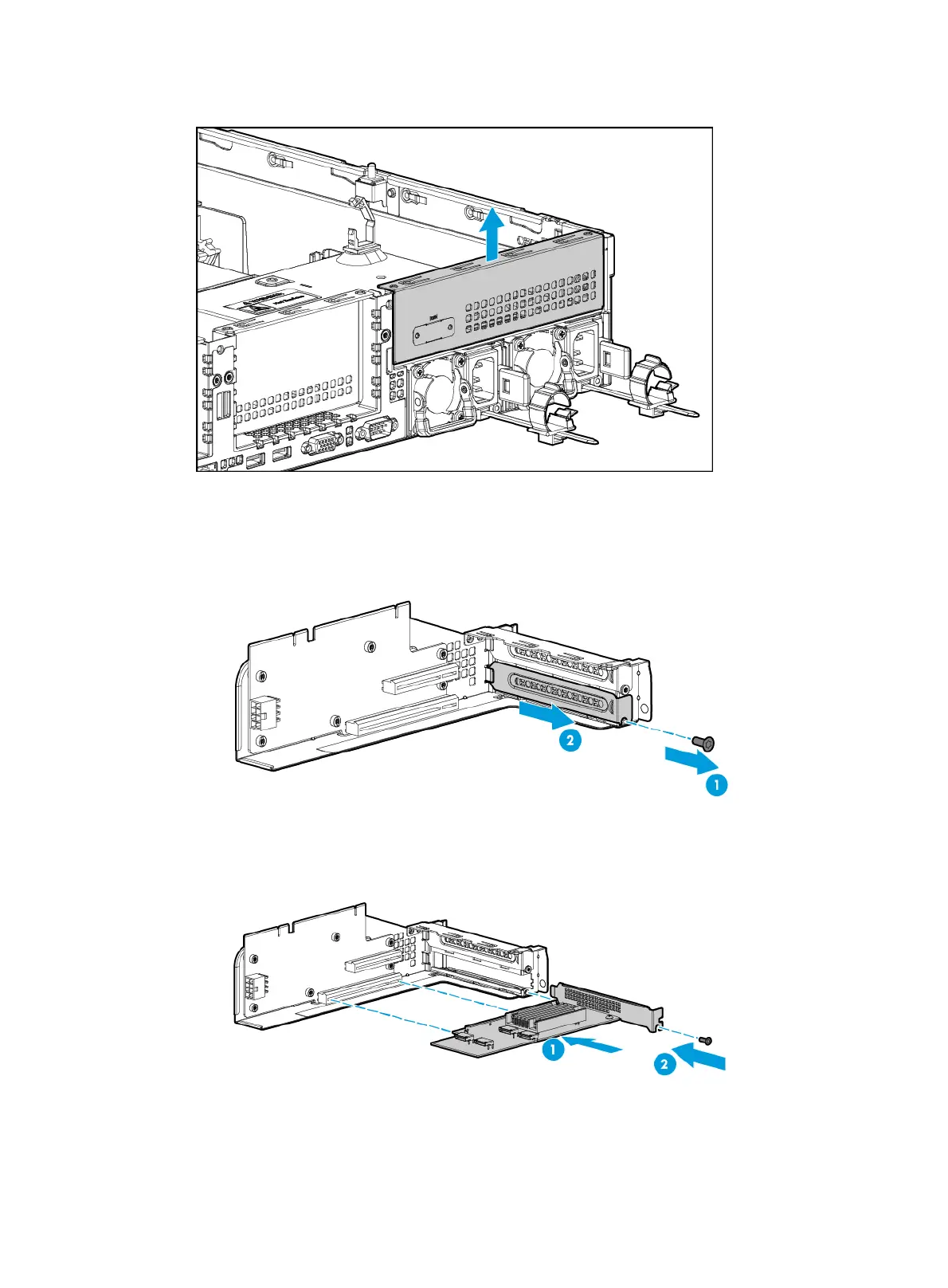

Figure 71 Removing the riser card blank
5. Install the PCIe module on the riser card:
a. Remove the screw on the PCIe module blank in the target PCIe slot, and then pull the blank
out of the slot, as shown in Figure 72.
Figure 72
Removing the PCIe module blank
b. Insert the PCIe module into the slot along the guide rails and use the screw to secure it into
place, as shown in Figure 73.
Figure 73
Installing the PCIe module
6. Install the riser card bracket and use screws to secure it into place, as shown in Figure 74.
