Connecting the front I/O component cable
assembly
The front I/O component cable assembly is a two-to-one cable attached to the right chassis ear.
Connect the cable to the front I/O component connector on the system board as shown in Figure
182.

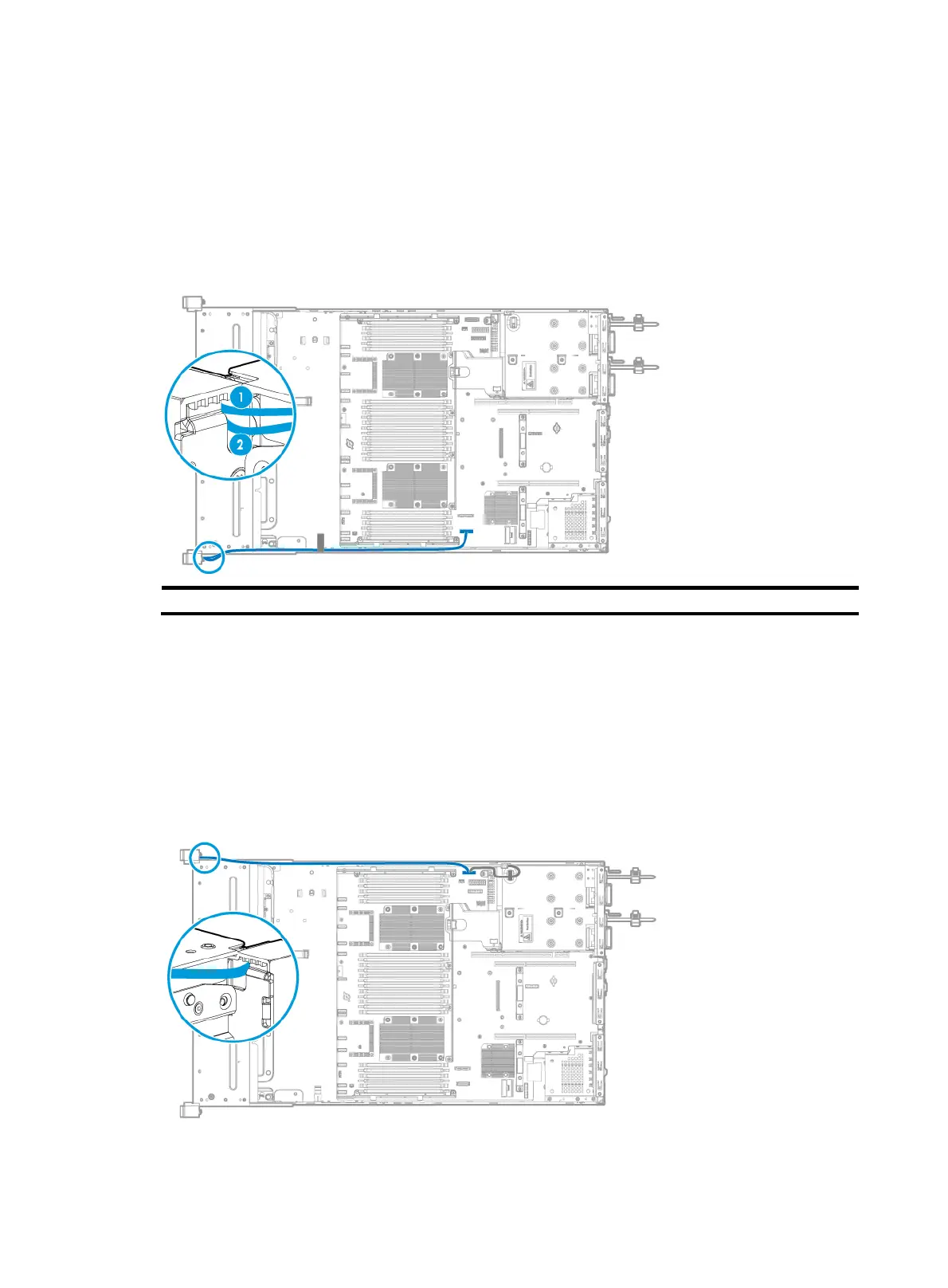

Figure 182
Connecting the front I/O component cable assembly
(1) Front I/O LED cable (2) USB 3.0 connector cable
Connecting the cable for the front VGA and USB
2.0 connectors on the left chassis ear
Connect the cable for the front VGA and USB 2.0 connectors on the left chassis ear as shown
in Figure 183.
Figure 183
Connecting the cable for the front VGA and USB 2.0 connectors on the left
chassis ear
