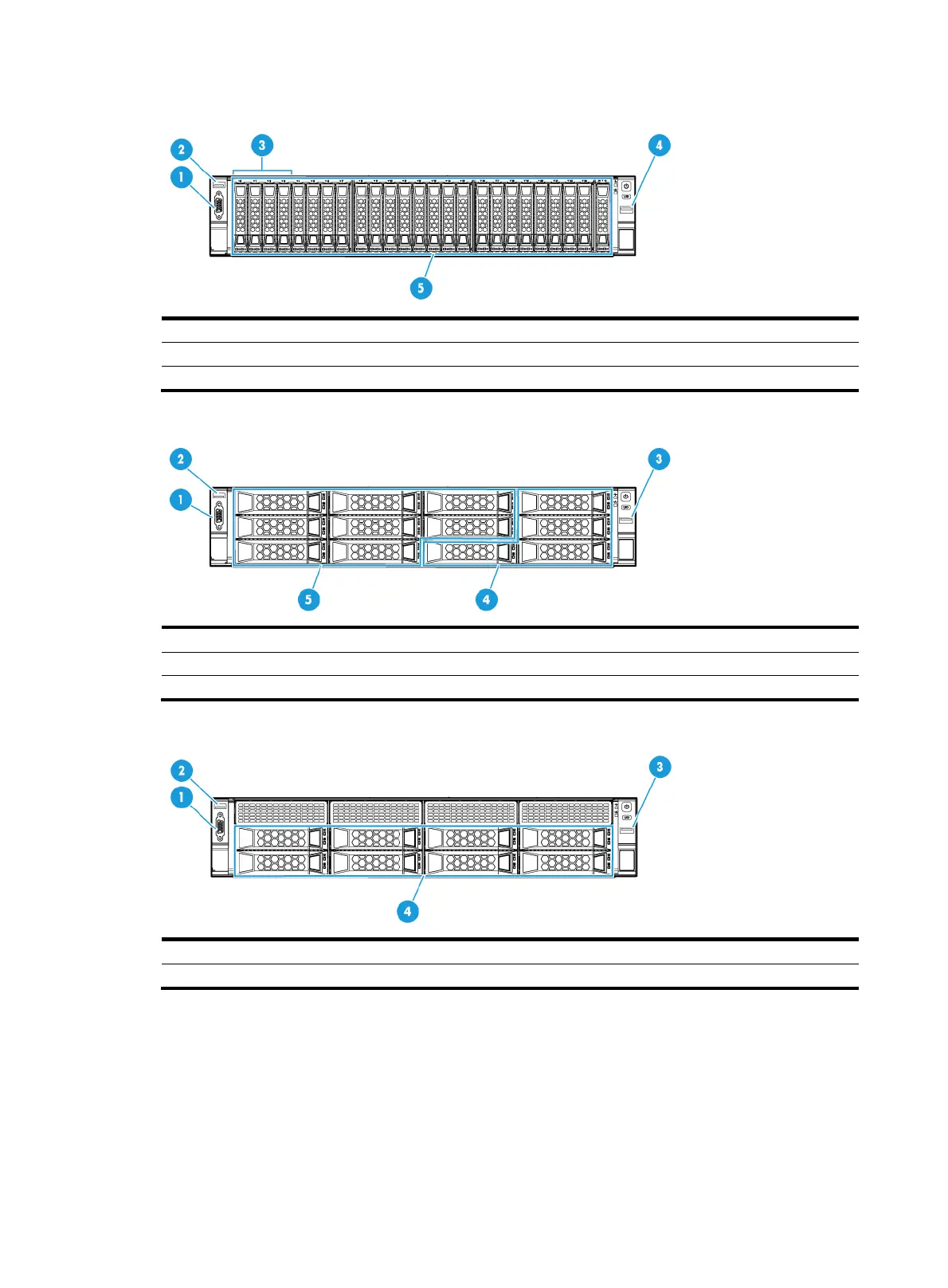

Figure 187 UIS-Cell 3020 G3 front panel
(1) VGA connector (optional) (2) USB 2.0 connector (optional)
(3) SAS/SATA drives (optional) (4) USB 3.0 connector
(5) 25SFF SAS/SATA drives (optional)
Figure 188 UIS-Cell 3030 G3 front panel
(1) VGA connector (optional) (2) USB 2.0 connector (optional)
(3) USB 3.0 connector (4) SAS/SATA drives
(5) SAS/SATA drives
Figure 189 UIS-Cell 3040 G3 front panel
(1) VGA connector (optional) (2) USB 2.0 connector (optional)
(3) USB 3.0 connector (4) 8LFF SAS/SATA drives
LEDs and buttons
The LED and buttons are the same on all server models. Figure 190 shows the front panel LEDs and
buttons. Table 15 de
scribes the status of the front panel LEDs.
