H3C UIS-Cell 3000 G3

127

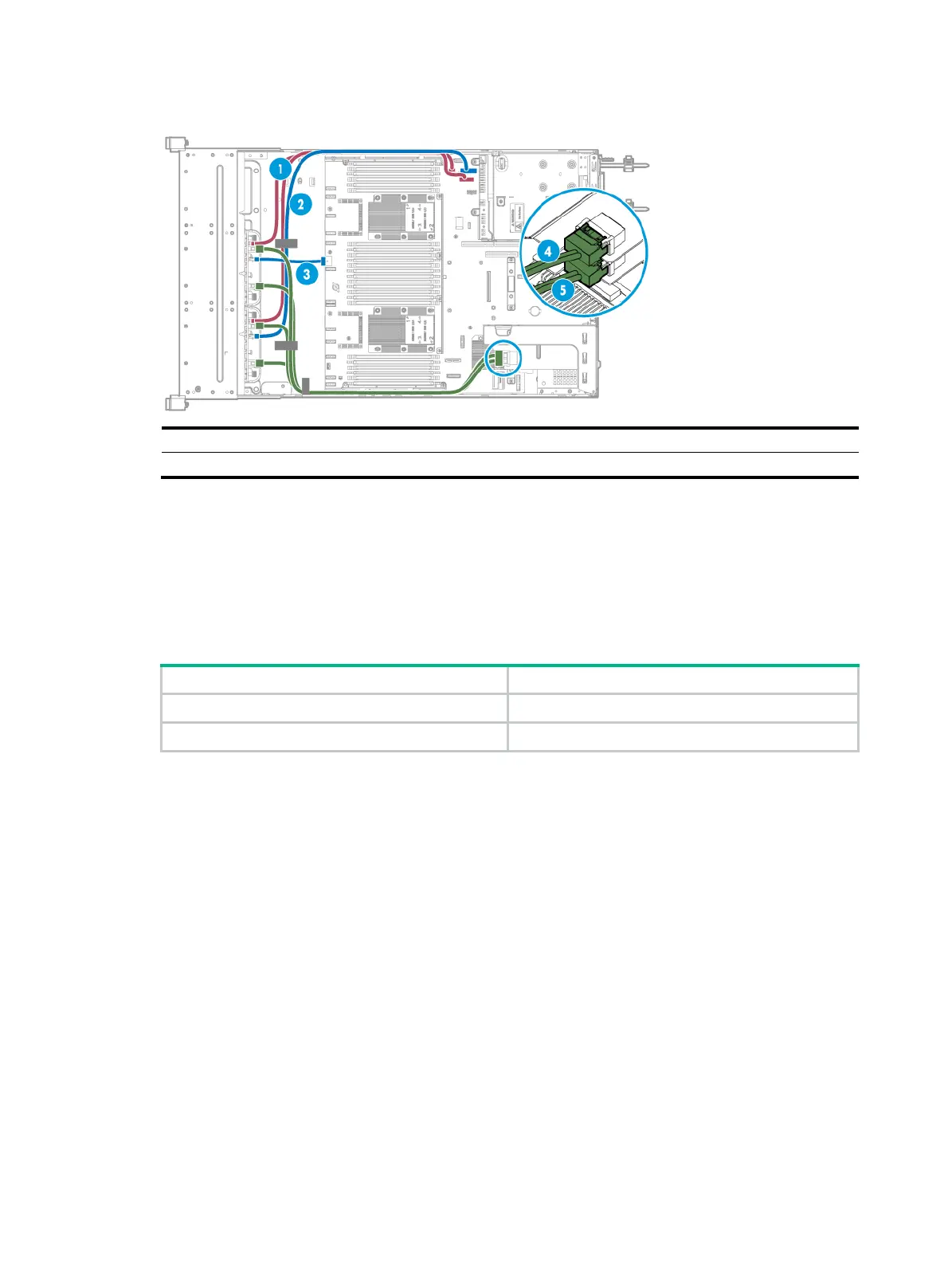

Figure 167 16SFF SAS/SATA drive backplane connected to the standard storage controllers
(1) AUX signal cables (2) and (3) Power cords
(4) SAS/SATA data cable 1 (for drive cage bay 2) (5) SAS/SATA data cable 2 (for drive cage bay 3)
UIS-Cell 3020 G3 server
25SFF SAS/SATA drive cabling
Use Table 10 to select the method for connecting the 25SFF SAS/SATA drive backplane to a storage
controller depending on the type of the storage controller.
Table 10 25SFF SAS/SATA drive cabling methods
Storage controller Cabling method
Mezzanine storage controller See Figure 168.
Standard storage controller See Figure 169.
