156
UIS-Cell 3020 G3 25 SFF SAS/SATA drives
• Mezzanine
• Standard
UIS-Cell 3030 G3
12 LFF SAS/SATA drives (with a drive
expander module)
• Mezzanine
• Standard
12 LFF SAS/SATA drives
• Mezzanine
UIS-Cell 3040 G3 8 LFF SAS/SATA drives
• Embedded RSTe
• Mezzanine
• Standard
Drive numbering
UIS-Cell 3010 G3
Table 24 Drive population and drive numbering schemes
Drive
configuration
Drive cage
bay 1
Drive cage
bay 2
Drive cage
bay 3
Drive numbering
8SFF Unused Used Unused See Figure 196.
16SFF Unused Used Used See Figure 197.
NOTE:
For the location of the drive cage bays on the front panel of the server, see "Front panel view of the
serv
er."

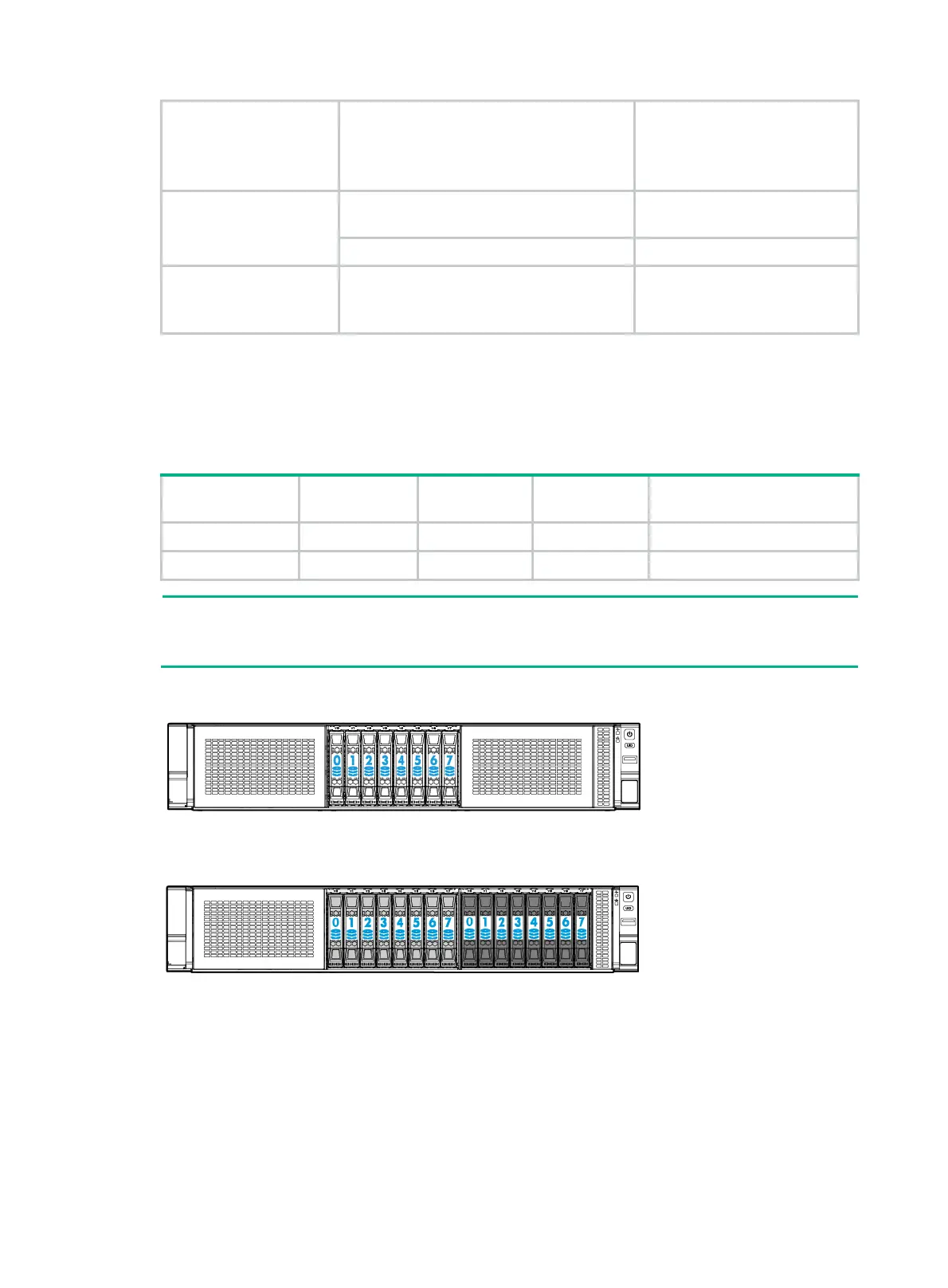

Figure 196 Drive numbering for 8SFF drive configurations
Figure 197 Drive numbering for 16SFF drive configurations
