8. Insert the riser card in PCIe riser connector 3 and fasten the captive screw to the system board,

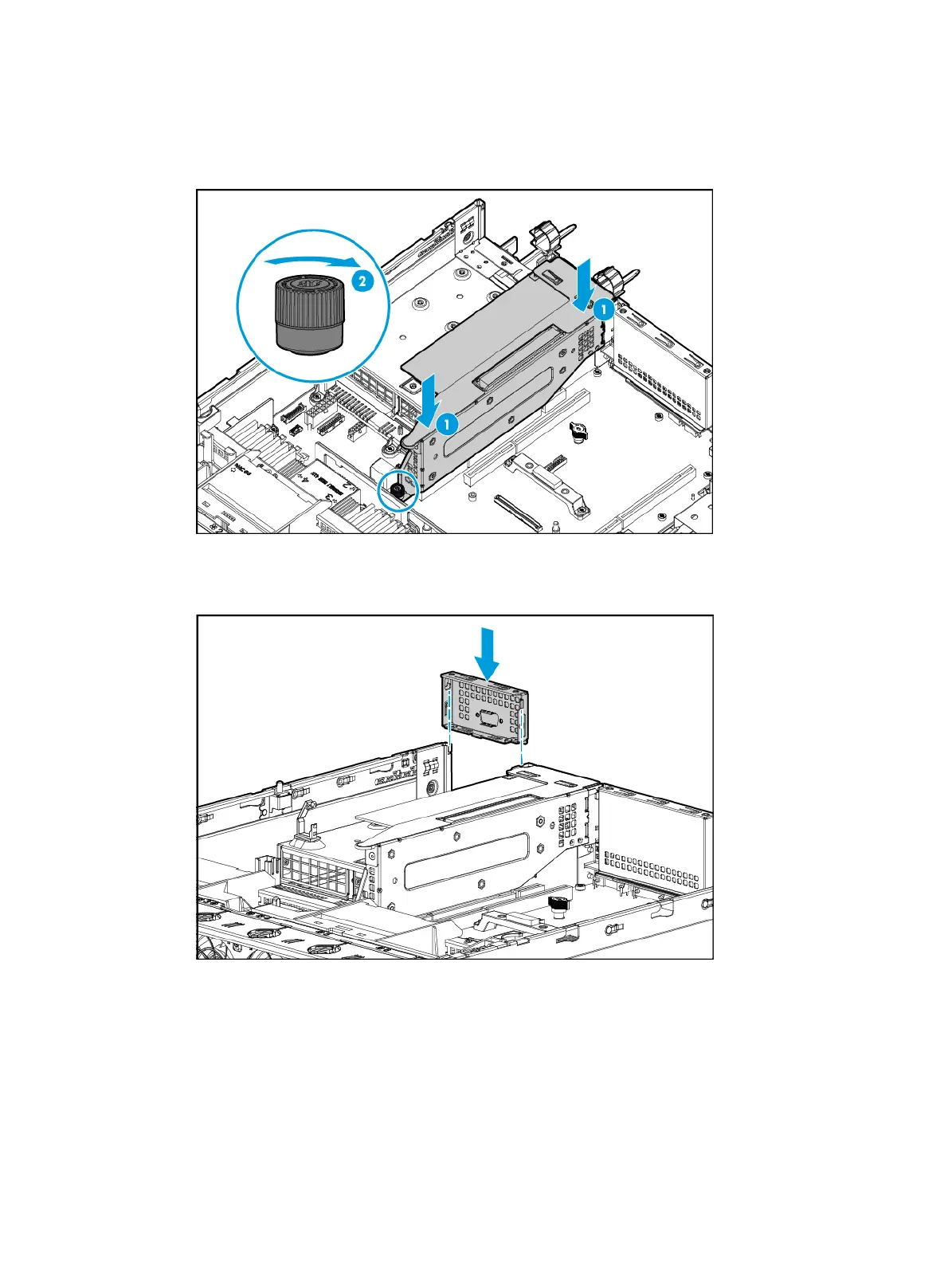

as shown in Figure 79.
Figure 79
Installing the riser card
9. Install the PCIe riser card blank, as shown in Figure 80.
Figure 80 Installing the PCIe riser card blank
10. Install the power supply air baffle. For more information, see "Installing air baffles."
11. Connect PCIe module cables, if any.
12. Install the access panel. For more information, see "Installing the access panel."
13. Rack-mount the server. For more information, see "Rack-mounting the server."
14. Con
nect the power cord. For more information, see "Connecting the power cord."
15. Powe
r on the server. For more information, see "Powering on the server."
