56
3. Remove the access panel. For more information, see "Removing the access panel."
4. Remove the blank from PCIe riser connector 3, as shown in Figure 71.
5. Remove the
power supply air baffle. For more information, see "Removing air baffles."
6. Install the PCIe module on
the riser card:
a. Remove the screw on the PCIe module blank in the target PCIe slot, and then pull the blank
out of the slot, as shown in Figure 76.

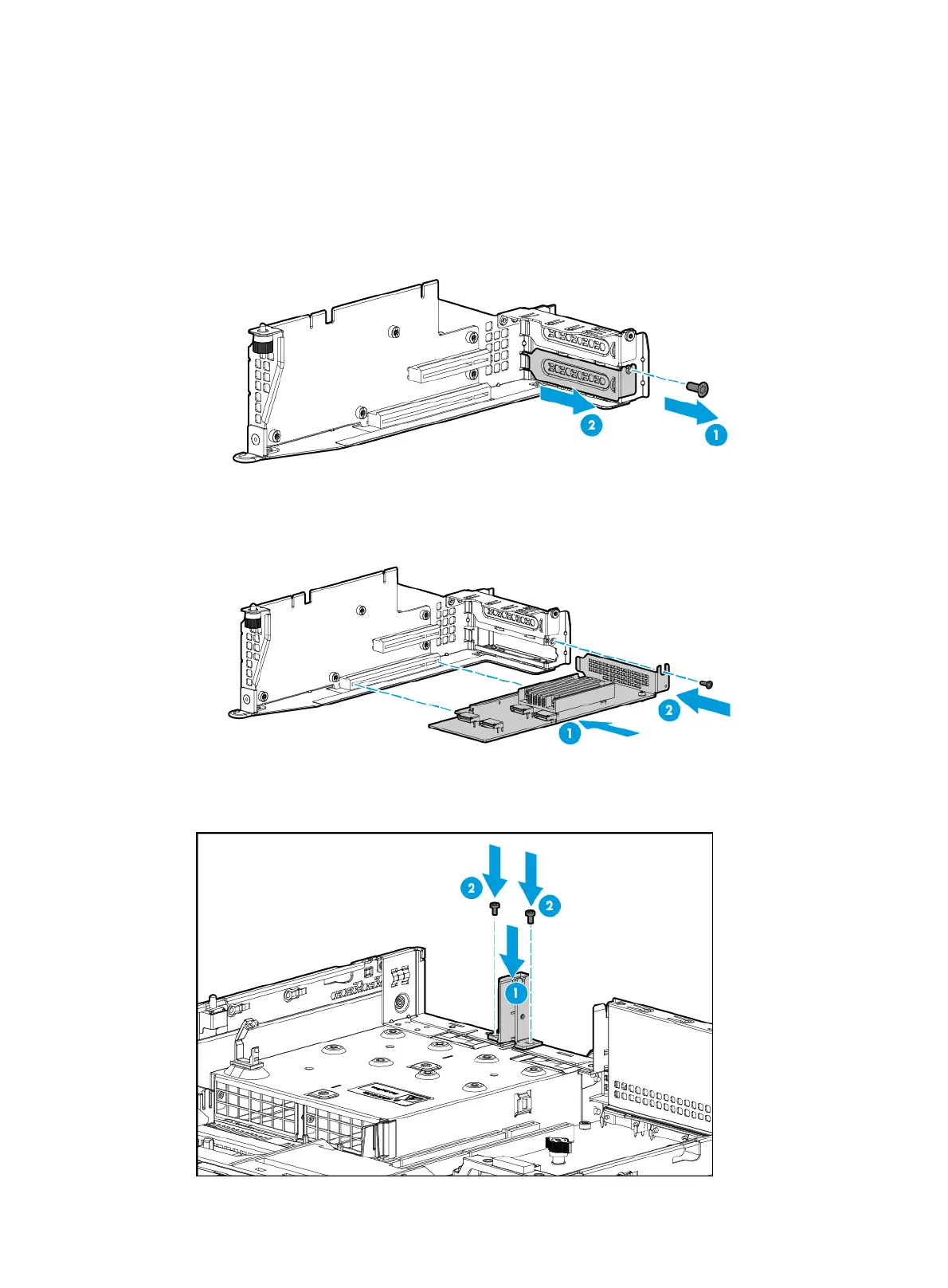

Figure 76
Removing the PCIe module blank
b. Insert the PCIe module into the slot along the guide rails and use the screw to secure it into
place, as shown in Figure 77.
Figure 77
Installing the PCIe module
7. Install the riser card bracket and use screws to secure it into place, as shown in Figure 78.
Figure 78 Installing the riser card bracket
