64

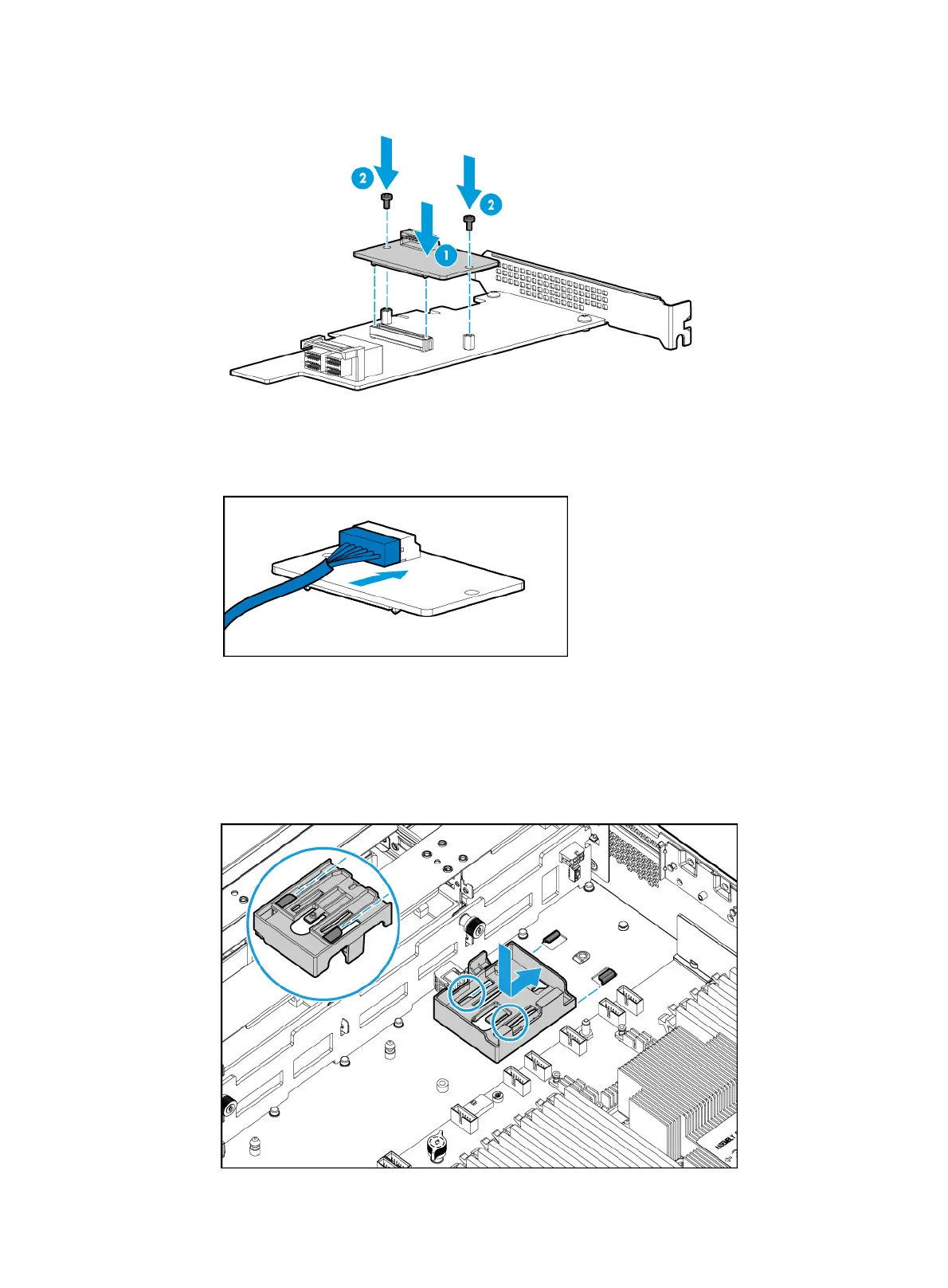

Figure 90 Installing the flash card
b. Connect the extension cable (P/N 0404A0SV) provided with the power fail safeguard
module to the flash card.
Figure 91 Connecting the extension cable to the flash card
7. Install the standard storage controller to the server by using a riser card. For more information,
see "Installing riser cards and PCIe modules."
8. (Option
al.) Install the supercapacitor of the power fail safeguard module:
a. Install the supercapacitor holder in the server chassis, as shown in Figure 92.
Make sure its
bottom flanges are seated in the grooves for supercapacitor installation.
Figure 92 Installing the supercapacitor holder
