52

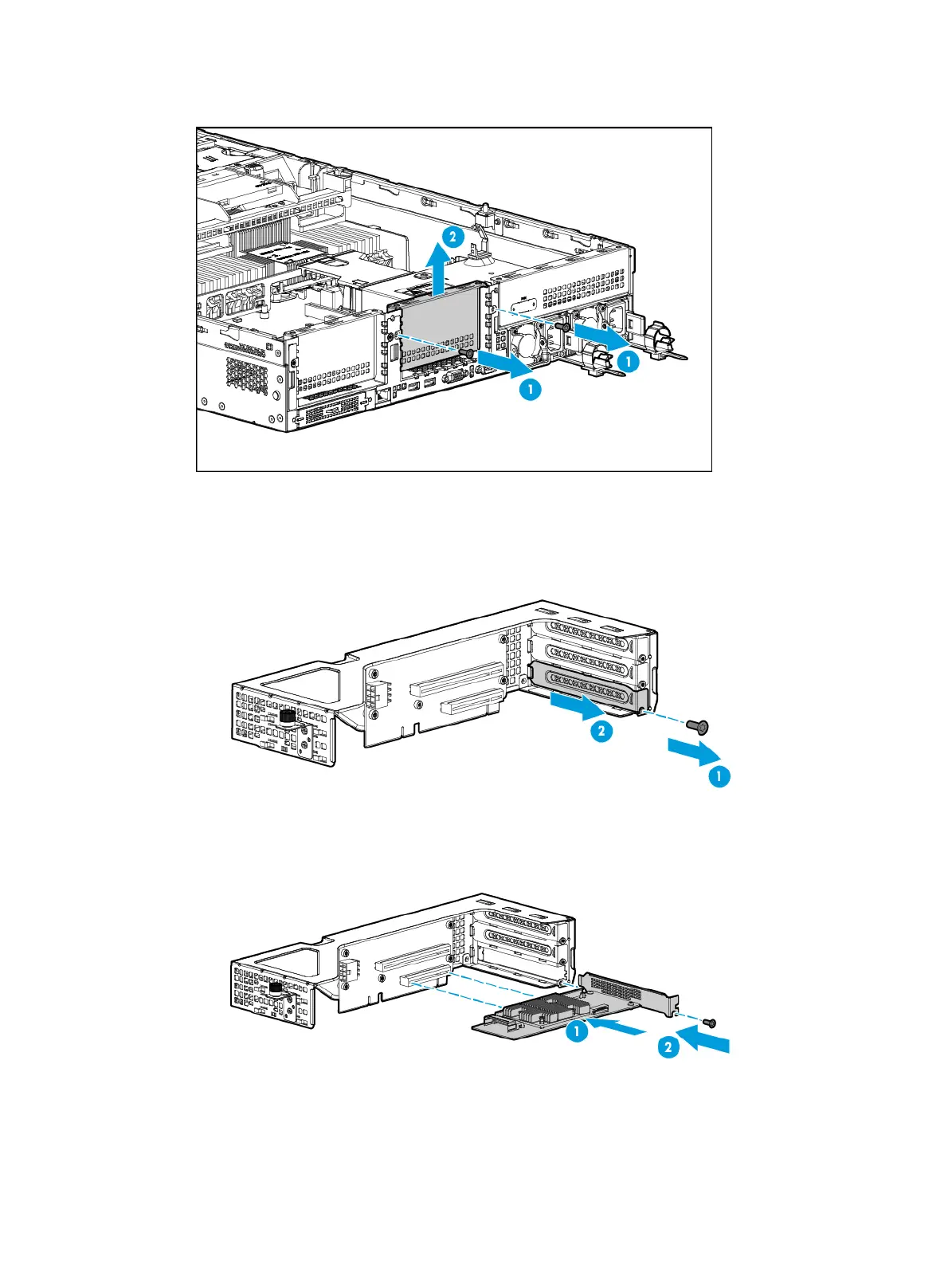

Figure 67 Removing the riser card blank
5. Install the PCIe module on the riser card:
a. Remove the screw on the PCIe module blank in the target PCIe slot, and then pull the blank
out of the slot, as shown in Figure 68.
Figure 68
Removing the PCIe module blank
b. Insert the PCIe module into the slot along the guide rails and use the screw to secure it into
place, as shown in Figure 69.
Figure 69
Installing the PCIe module
6. Insert the riser card in PCIe riser connector 2, and then fasten the captive screw to the chassis
air baffle, as shown in Figure 70.
