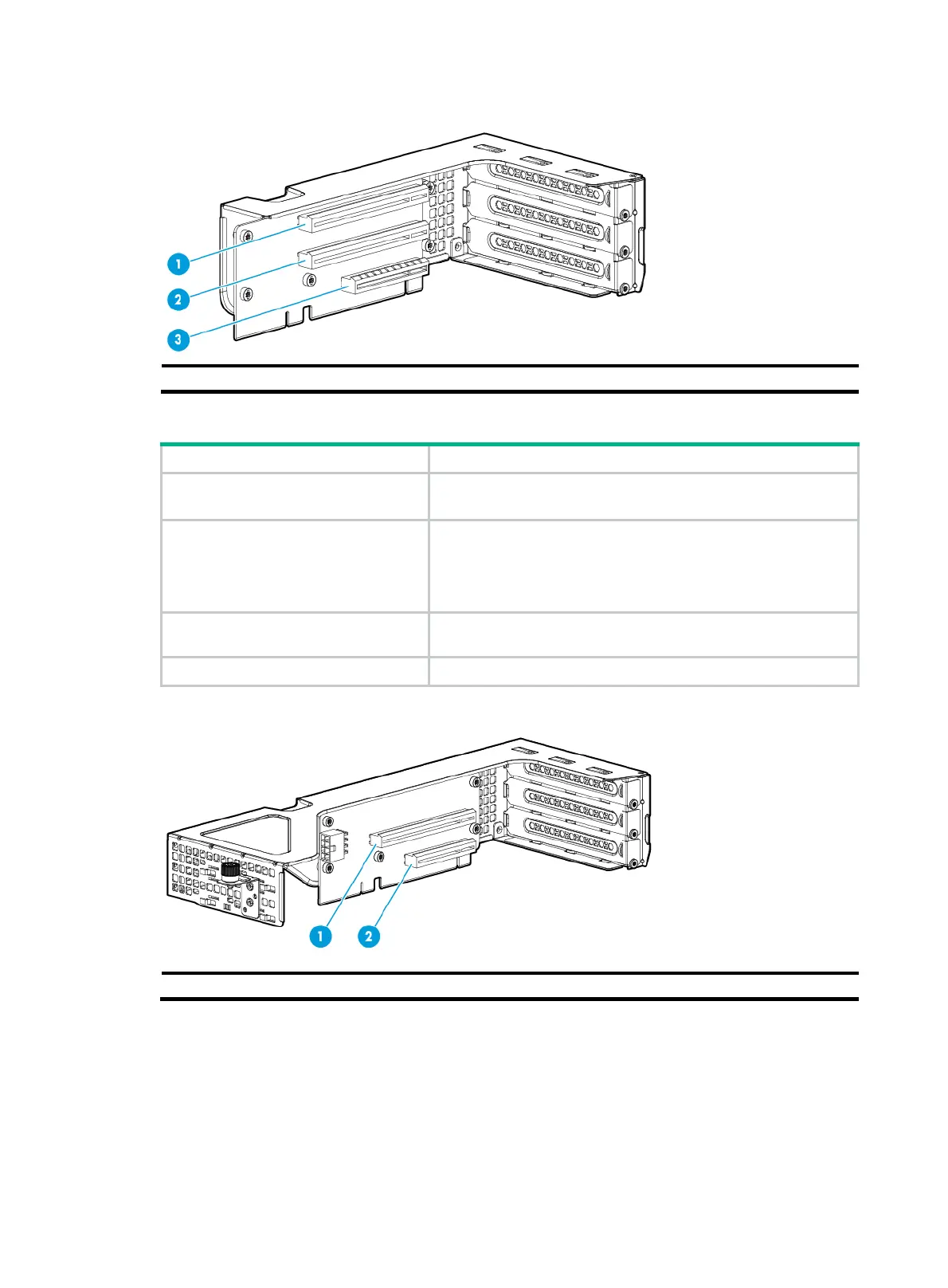

Figure 202 PCIe slots on the UIS-RS-3*FHHL-F riser card
(1) PCIe slot 1/4 (2) PCIe slot 2/5 (2) PCIe slot 3/6
UIS-RC-GPU/FHHL-2U-G3-F1
Item Specifications
PCIe riser connector
• Connector 1
• Connector 2
PCIe slots
• Slot 2/5: PCIe3.0 ×16 (16, 8, 4, 2, 1)
• Slot 3/6: PCIe3.0 ×8 (8, 4, 2, 1)
NOTE:
The numbers in parentheses represent link widths.
Form factors of PCIe modules
FHHL (only slot 2/5 supports single-wide and double-wide GPU
modules)
Maximum power supplied per PCIe slot 75 W
Figure 203 PCIe slots on the UIS-RC-GPU/FHHL-2U-G3-F1 riser card
(1) PCIe slot 2/5 (2) PCIe slot 3/6
