14

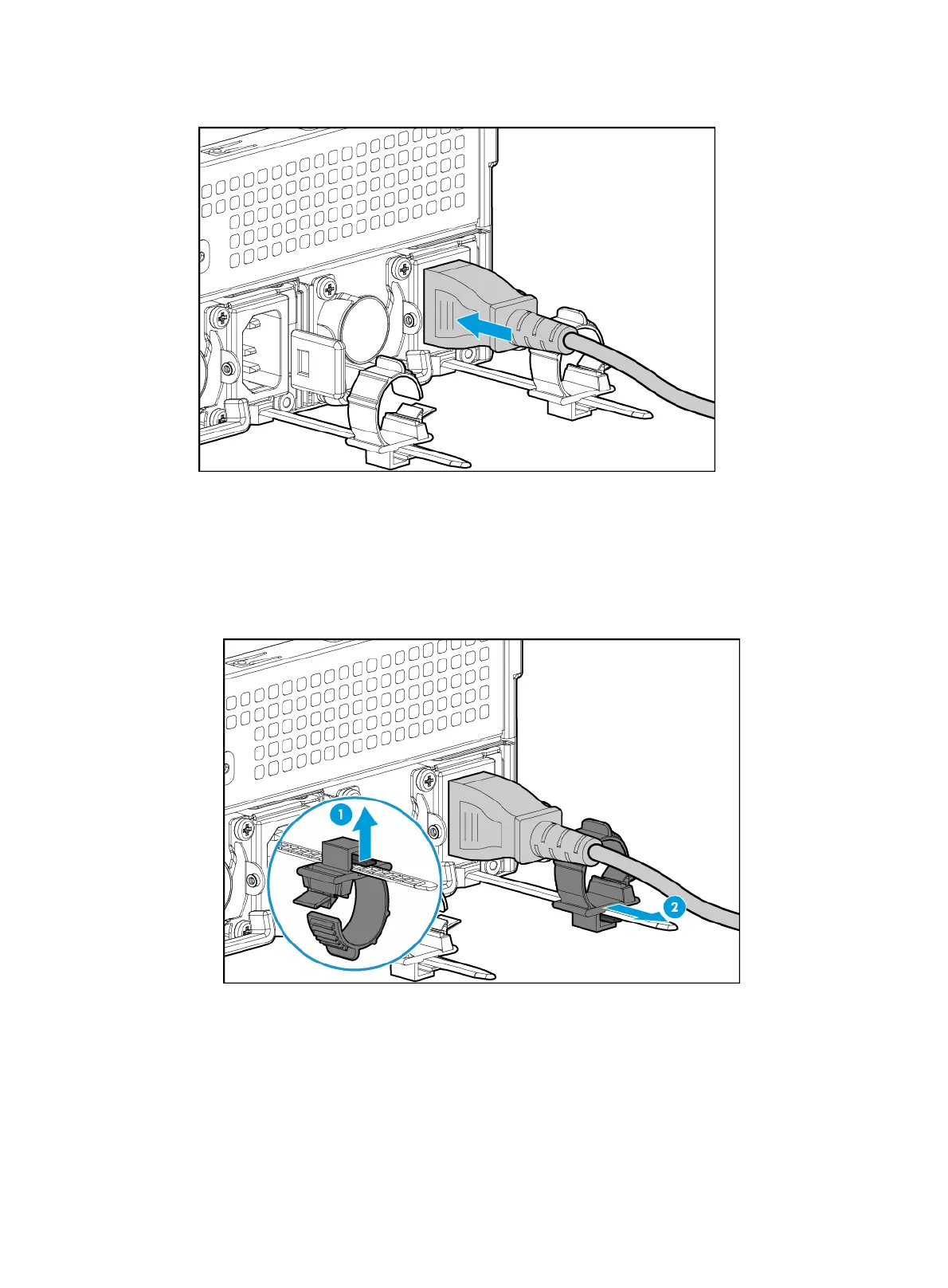

Figure 8 Connecting the power cord
2. Connect the other end of the power cord to the power source, for example, the power strip on
the rack.
3. Secure the power cord to avoid unexpected disconnection of the power cord.
a. (Optional.) If the cable clamp is positioned too near the power cord and blocks the power
cord plug connection, press down the tab on the cable mount and slide the clamp backward.
Figure 9 Sliding the cable clamp backward
b. Open the cable clamp, place the power cord through the opening in the cable clamp, and
then close the cable clamp, as shown by callouts 1, 2, 3, and 4 in Figure 10.
