HIKVISION DS-K1T804A Series User Manual

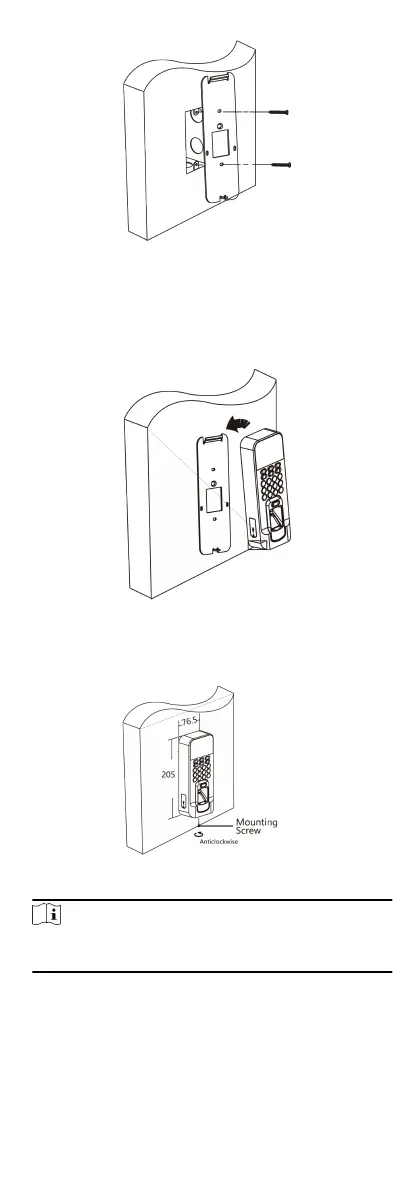

Figure 5-2 Install Mounng Plate
4.
Wire the corresponding cables.
5.
Align the device with
mounng plate. Push the terminal in the
mounng plate from boom up. Fasten the terminal with the
buckles on the plate.
Figure 5-3 Install Device
6.
Fix the device with one screw on the mounng plate and
complete the
installaon.
Figure 5-4 Secure
Note
The pictures in this documentaon are for references only,
refer to the actual product.
6 Acvaon
