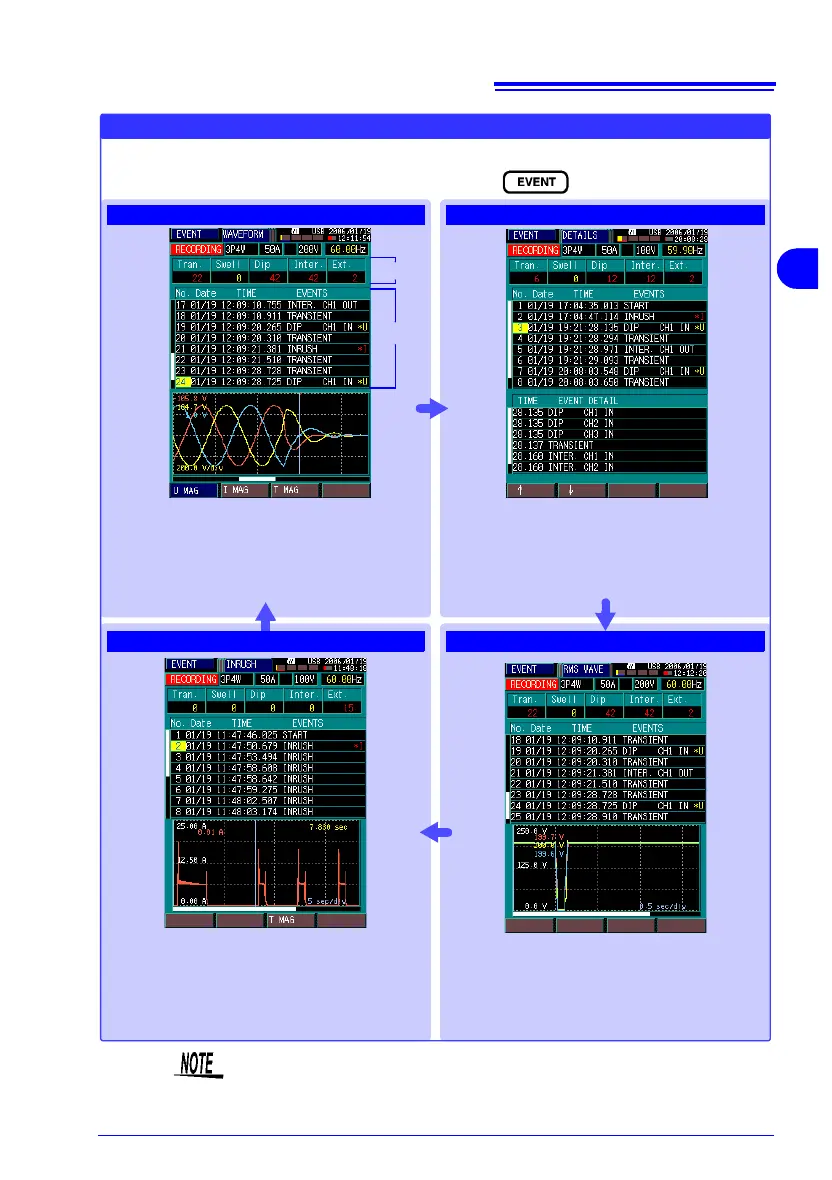

Event occurrences are monitored and contents
displayed in a list. The Event Monitor shows the
number of occurrences of each type of event.
Use the cursor keys to select event waveforms
from the list for display. Use the function keys to
switch between voltage and current waveforms.
EVENT (Viewing Anomalous Events)
Displays power anomaly detection results.
The displayed screen changes each time you press
Each row of the Event List may include multi-
ple events, in which case the details of the
event contents are display in order of occur-
rence in the Event Detail display.
When a swell, dip or interruption event has oc-
curred, a graph showing details of rms voltage
fluctuations appears.
When an inrush current event has occurred, a
graph showing details of rms current fluctua-
tions appears.
Event List
Event Monitor
data is present.
