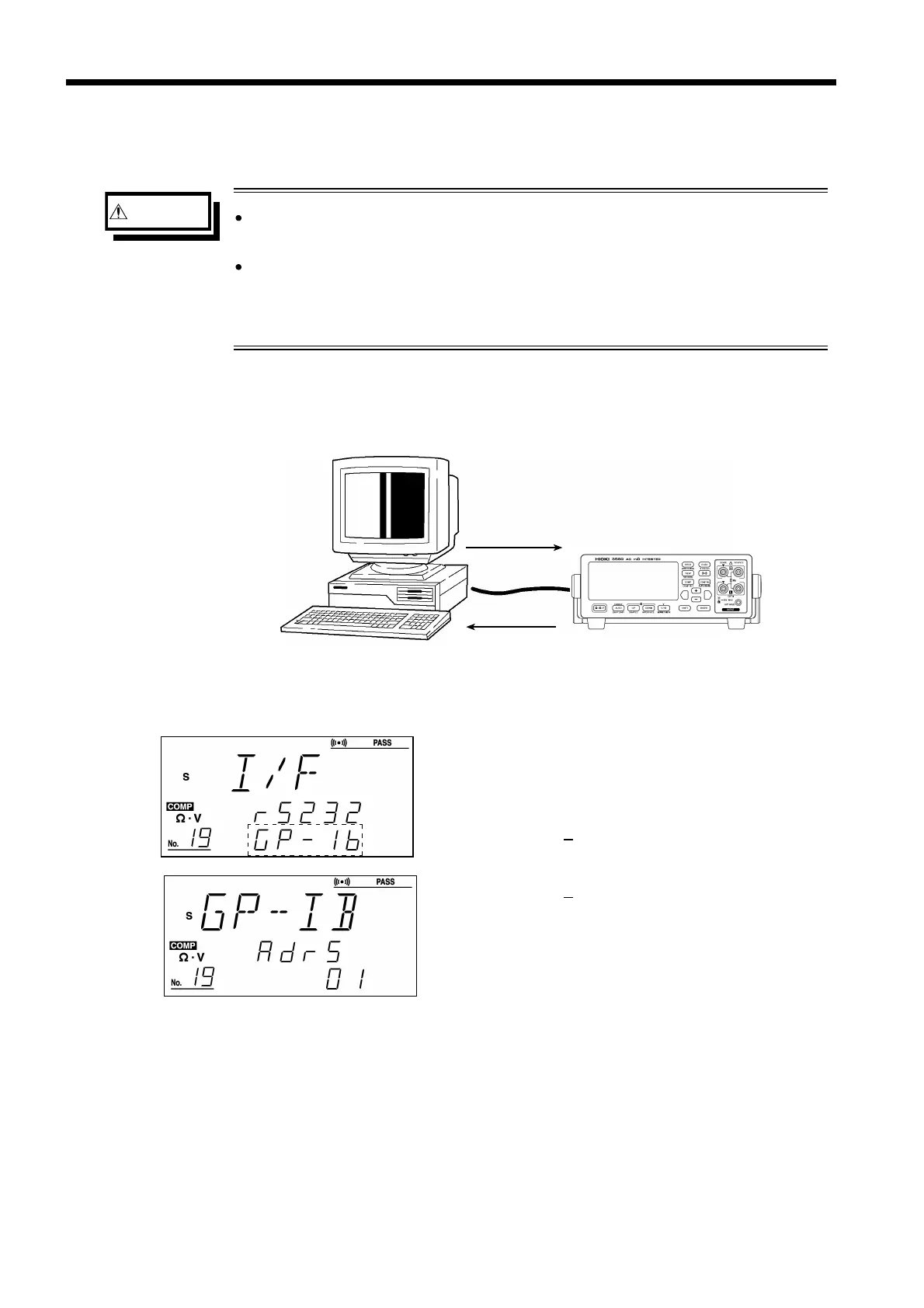

8.1 Connection to Computer (GP-IB)
────────────────────────────────────────────────────
WARNIN
G
To avoid electrocution, turn off the power to all devices before
plugging or unplugging any of the interface connectors.
To avoid damage to the interface, do not short the output terminal
and do not input voltage to the output terminal. When the instrument
is removed, place a blank panel over the opening. This keeps the
instrument’s internal temperature uniform and within specifications.
Response messag
e
Program messag
e
8
.1 Connection to Computer (GP-IB)
To connect the 3560 to a PC, connect the GP-IB cable to the instrument’s
GP-IB connector and the PC serial port. GP-IB cables are available from
Hioki in two lengths: 9151-02 (2 m) and 9151-04 (4 m).
■ Setting the GP-IB address
1. Press the SHIFT key. "SHIFT" appears lit on the
display.
2. Press the
DOWN/INTERFACE key.
3. Use the
+ and keys to select GP-IB.
4. Press the
ENTER key.
5. Use the
+ and keys to set the address. You
may select numbers in the range from 0 to 30.
6. Press the
ENTER key to return to the
measurement screen.
