5.6 Checking the Comparator Conditions (View)
────────────────────────────────────────────────────
5
.6.2 View in Comparator of Resistance and Voltage
Measurement Mode Setting
NOTE
When the resistance/voltage measurement mode has been set to the
comparator, the upper and lower limits of both the resistance and voltage
can be displayed.

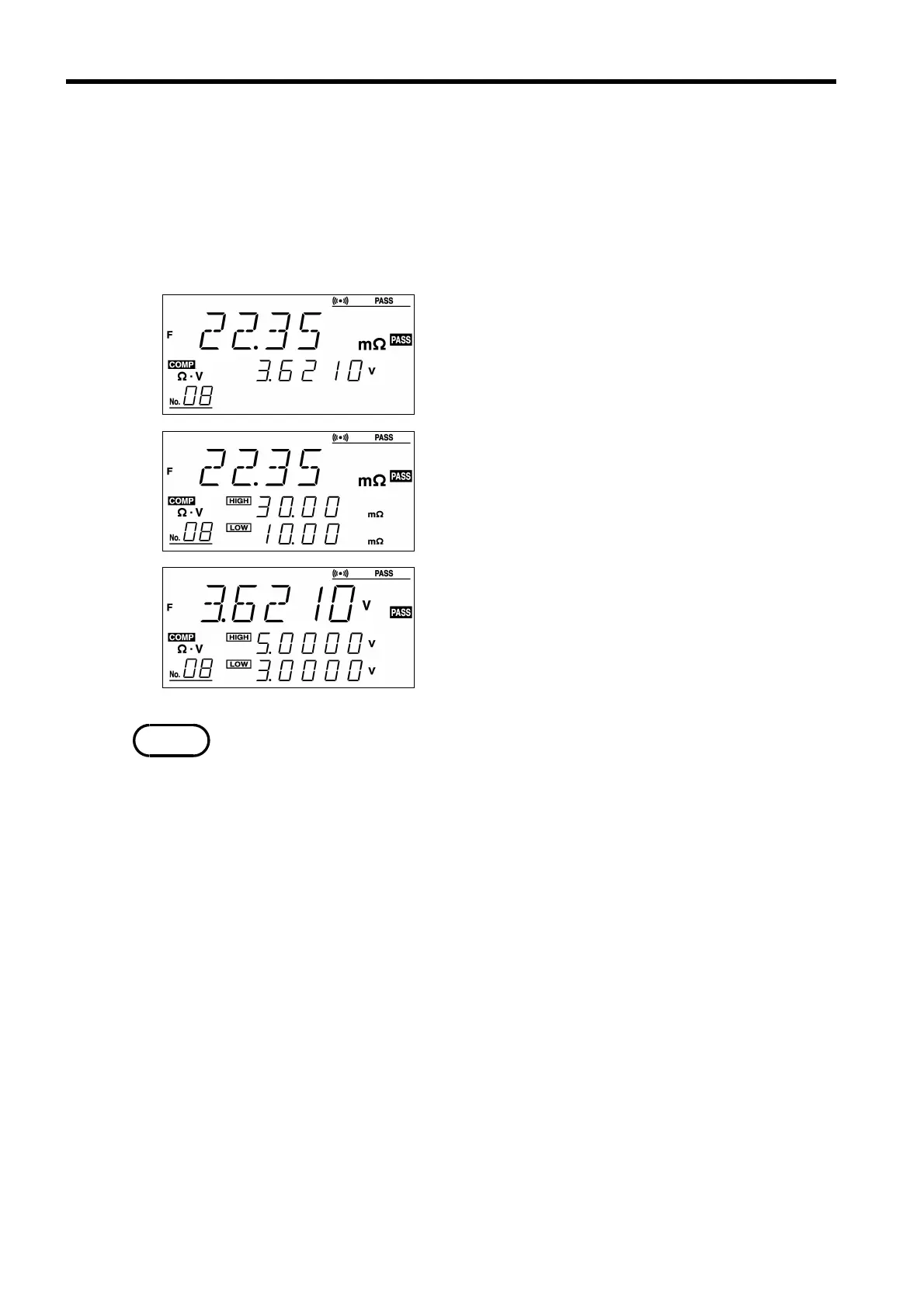

1. Pressing the
VIEW key stops displaying the
measured voltage, displaying instead the upper
and lower limits of the resistance comparator
observed in the comparator number field.
2. Pressing the
VIEW key again stops display of the
measured resistance, displaying instead the
measured voltage. In parallel with this action,
the screen displays the upper and lower limits of
the voltage comparator observed in the
comparator number field.
3. When the
VIEW key is pressed again, the upper
and lower limits of the comparator disappear
and the system returns to the measurement
screen.
･ The comparator number may be changed while using the
VIEW key. For
more information, see Section 5.4 "Changing the Comparator Number."
・When the resistance measurement mode is currently active but the
VIEW function is used for the comparator on which the resistance/voltage
measurement mode has been set, the measured value is not displayed in
the measured-voltage display field.
･ In the resistance and voltage measurement mode, the resistance (and/or
voltage) not displayed on the screen is also measured.
