Hioki 3560 - 9461 Pin Type Lead; 9467 Large Clip Type Lead; 9454 Zero Adjustment Board

139
────────────────────────────────────────────────────
11.4 Options
────────────────────────────────────────────────────
1

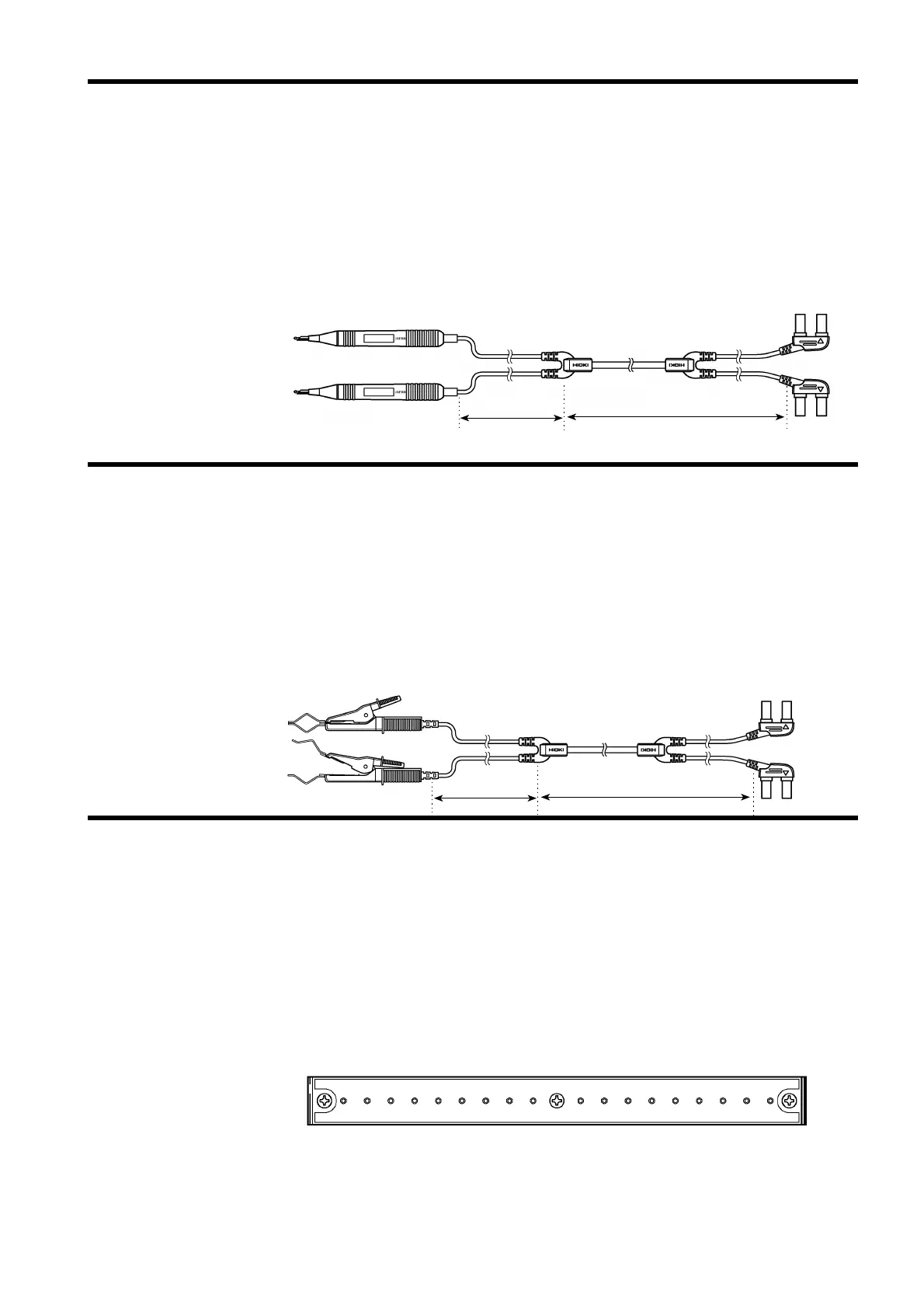

1.4.8 9461 PIN TYPE LEAD
250 mm
400 mm
1
1.4.9 9467 LARGE CLIP TYPE LEAD
250 mm
850 mm
1
1.4.10 9454 ZERO ADJUSTMENT BOARD
For contact portions occurring on a flat plane unsuited to clipping, or for
objects such as relay terminals and connectors, which have small contact
areas, this 9461 PIN TYPE LEAD can be pressed against the object for
four-terminal measurement.
Distance between the connector and the branch: approx. 400 mm
Distance between the branch and the probe: approx. 250 mm
This 9467 PIN TYPE LEAD designed to be attached to objects having
relatively thick, bar-shaped contact areas. As with 9287-10 and 9452
CLIP TYPE LEAD, four-terminal measurement is performed simply by
clipping the measured object.
Distance between the connector and the branch: approx. 850 mm
Distance between the branch and the probe end: approx. 250 mm
Maximum clip diameter: approx. φ29 mm
The 9454 ZERO ADJUSTMENT BOARD is used to implement zero-
adjust for the 9461 and 9465 PIN TYPE LEAD. Since this board has a
double structure composed of printed board and steel plate, the pin-type
lead can be short-circuited only by pressing the pin nose against the
specified contact hole. This board is not used for the 9455 PIN TYPE
LEAD.
Dimensions: approx. 214W×24H×8D mm
