Hioki 3560 - Status Model

109
────────────────────────────────────────────────────
8.2 Operating Procedure (GP-IB)
────────────────────────────────────────────────────
8

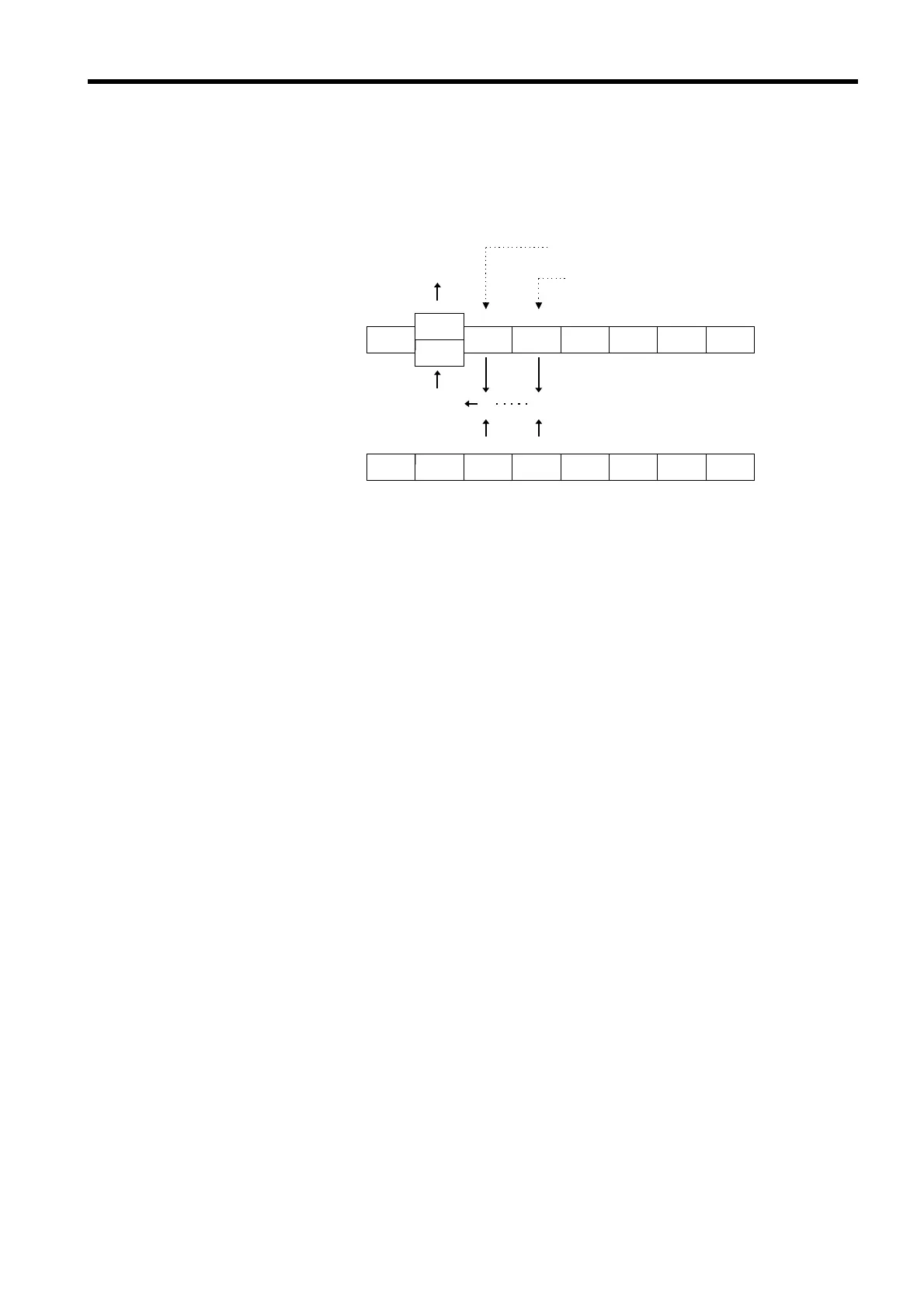

.2.11 Status Model
Logical sum
Generation of service
request RQS
MSS
RQS
ESB MAV
bit7
bit6
bit5
bit4
bit3
bit2
bit1
bit0
＆
＆
bit3
bit2
bit1
bit0
ESB MAV
bit5
bit4
×
bit7
bit6
Status byte registers（STB）
Service request enable register
（
SRER
）
Information on output queu
e
Information on standard event resiste
r
The term "event" refers to any phenomenon which generates a service
request.
The status byte register holds information relating to the event registers
and the output queue. It is further possible to use the service request
enable register as a mask to select the items required. If any of the bits
selected by the mask becomes 1, bit 6 (the master summary status or
MSS bit) is also set to 1, an SRQ message is generated, and this
generates a service request.
