4.1 Selecting the Measurement Mode
────────────────────────────────────────────────────
4
.1 Selecting the Measurement Mode
■ Resistance measurement mode
The resistance measurement mode is primarily used to measure the
contact resistance of relays, for example.
1. Press the
Ω/Ω.V key to select resistance mode.

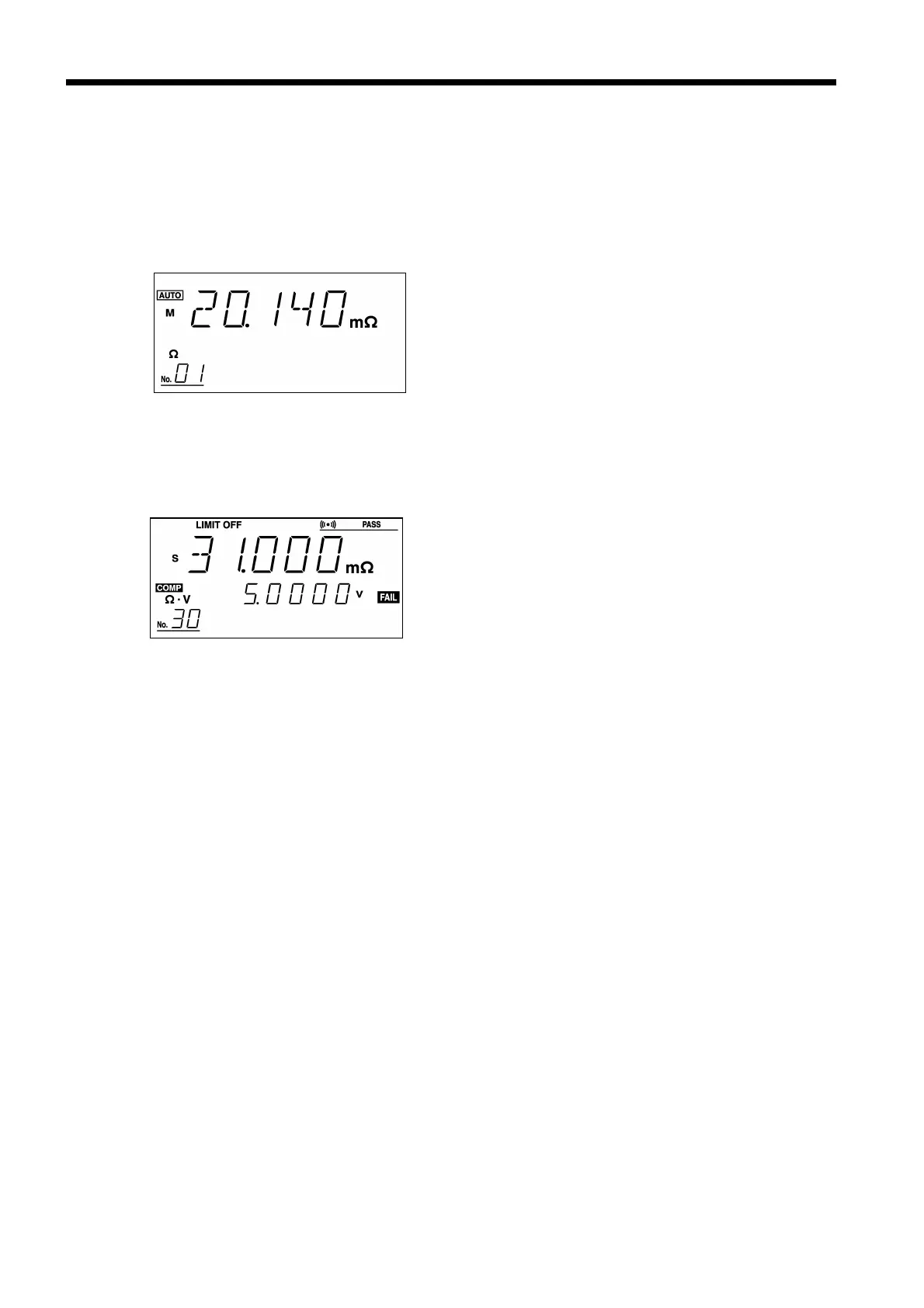

2. In resistance mode, only the "Ω" symbol for "Ω･
V" will appear lit in the display.
■ Resistance and voltage measurement mode
The resistance and voltage mode is used primarily for simultaneous
measurement of a battery’s internal resistance and open-circuit voltage.
1. Press the
Ω/Ω.V key to select resistance and
voltage mode.
2. In resistance and voltage mode, "Ω･V" appears
lit in the display.
