120
────────────────────────────────────────────────────
9.2 Connection with a General-purpose Centronics Printer
────────────────────────────────────────────────────
NOTE
Numbe
Input
and
outpu
Signal Numbe
Input
and
outpu
Signal
1 GND GND 11 OUT DATA 7
2 ＊＊＊＊ ＊＊＊＊ 12 OUT DATA 6
3 OUT DATA 5 13 GND GND
4 OUT DATA 4 14 ＊＊＊＊ ＊＊＊＊
5 OUT DATA 3 15 GND GND
6 GND GND 16 OUT DATA 2
7 ＊＊＊＊ ＊＊＊＊ 17 OUT DATA 1
8 OUT DATA 0 18 GND GND
9 OUT STB 19 ＊＊＊＊ ＊＊＊＊
10 IN BUSY 20 GND GND
･ Since the printer interface complies with the Centronics standard, your
printer should also conform to this standard.
･ To connect the 3560 to the 9203 DIGITAL PRINTER, use the 9425
CONNECTION CABLE and the leads supplied with the 9203.
9425: Connects the interface of the 3560 to the 9203.
Leads supplied with the 9203: Connect the GND terminal of the 3560 to
the GND terminal of the 9203 and the PRINT terminal of the 3560 to the
TRIG terminal of the 9203.
･ The data outputted from the instrument to printer is ASCII text only and
does not include any control command (except for CR+LF).
Only the printer, which can print ASCII text directly, is connectable. (ex.
ESC/P printer).
Please be careful that the type of printer, which needs the exclusive
commands to print ASCII text, is not connectable.

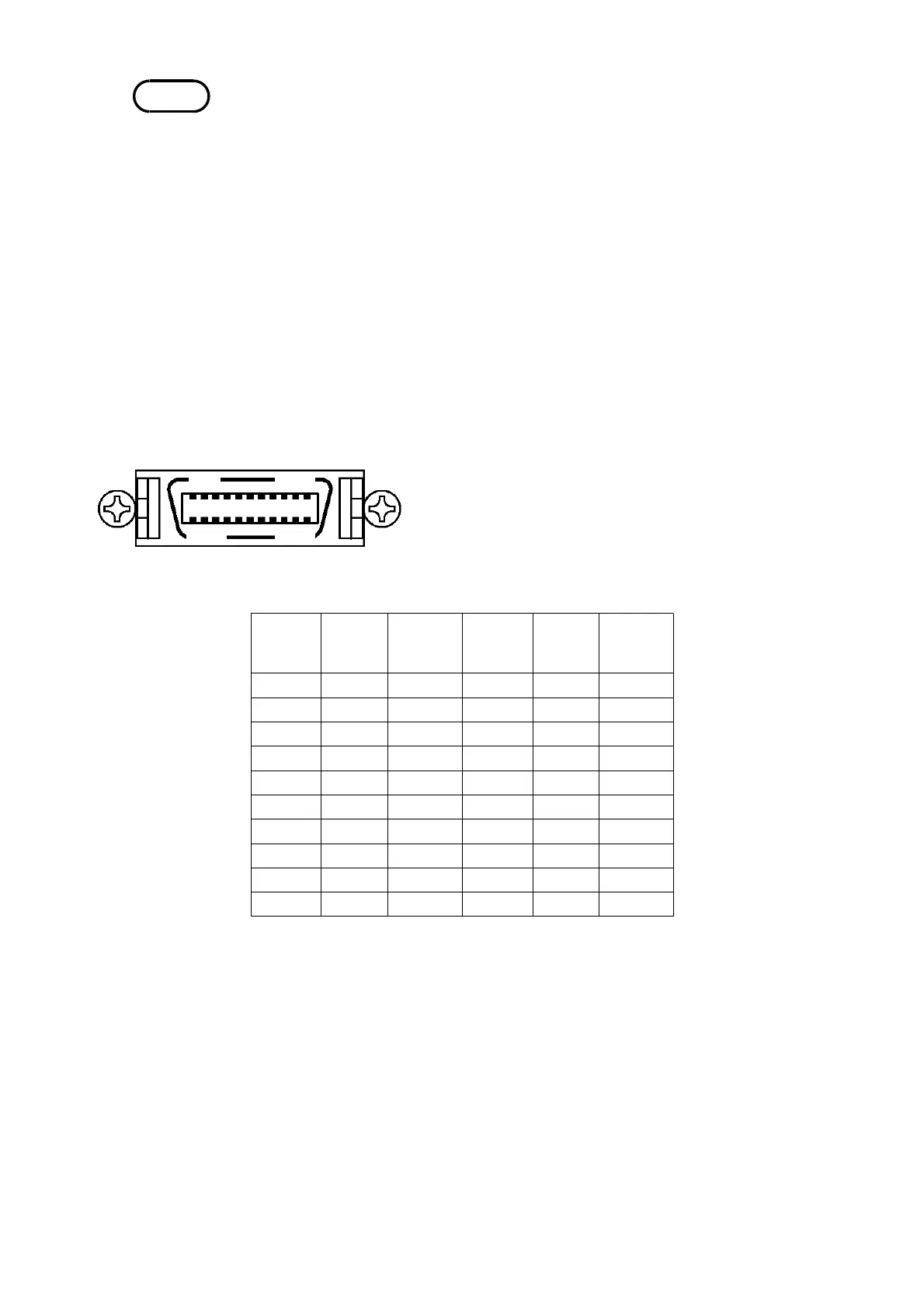

■ Connector
The 3560 has the following or equivalent printer
interface connector:
Socket: DHA-RC20-R132N (manufacturer: Daiichi
Denshi Kogyo (DDK)) 20-pin half-pitch connector
Pin: DHA-RC20-3G (manufacturer: Daiichi Denshi
Kogyo (DDK)) 20-pin half-pitch plug
■ Pin assignment and signals
To Next Page
