Hitachi TM3030 Plus - Page 379

7 - 85

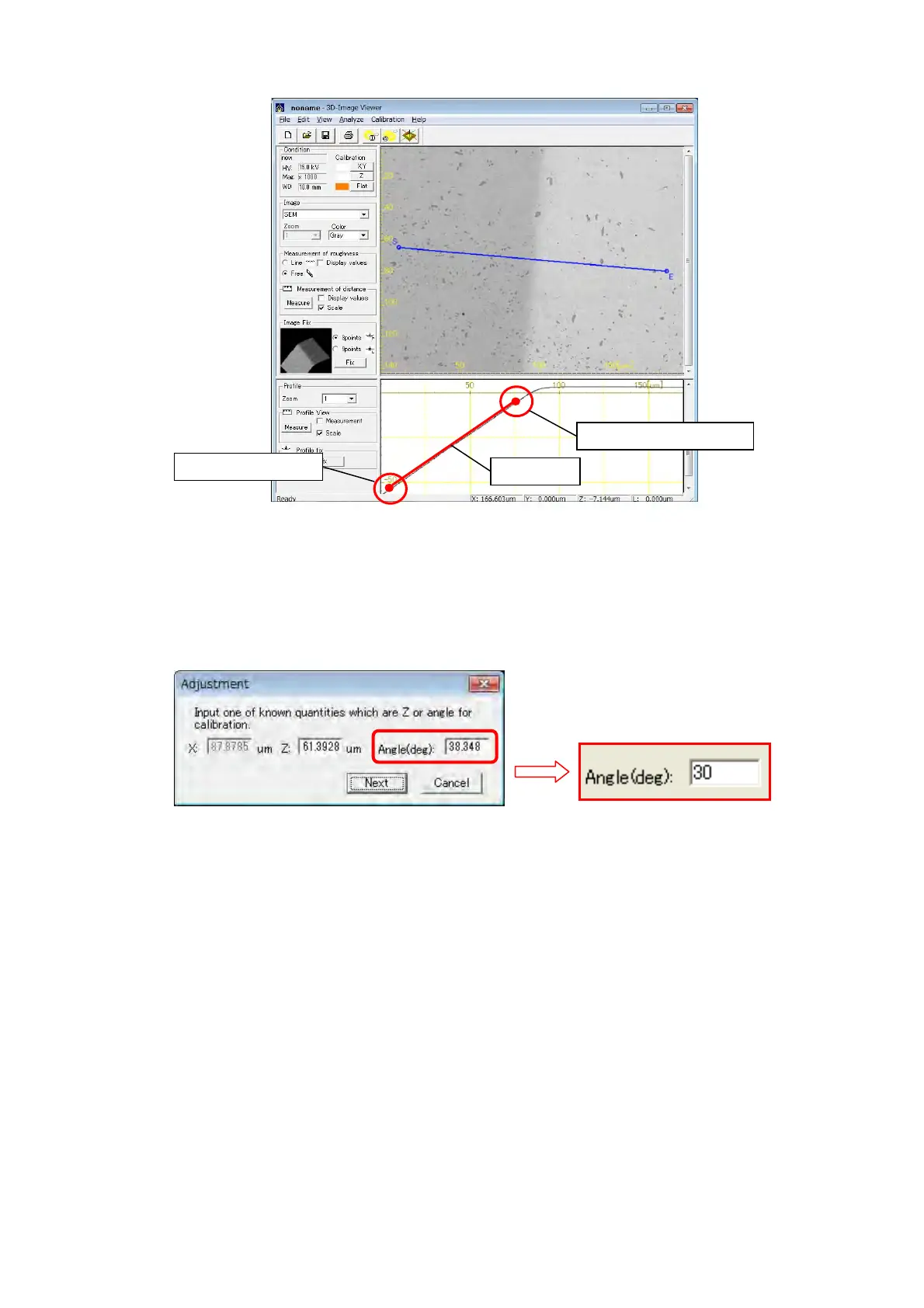

Figure 7.25.2-5 Example of Calibration of Z/Specifying Height Position
5. Input 30 that is an actual inclination angle of the specimen into the [Angle] box on the
Adjustment dialog, and execute calibration.
Figure 7.25.2-6 Adjustment Dialog
The Second click point
Slope line
The first click point
