Hitachi TM3030 Plus - Page 92

2 - 46

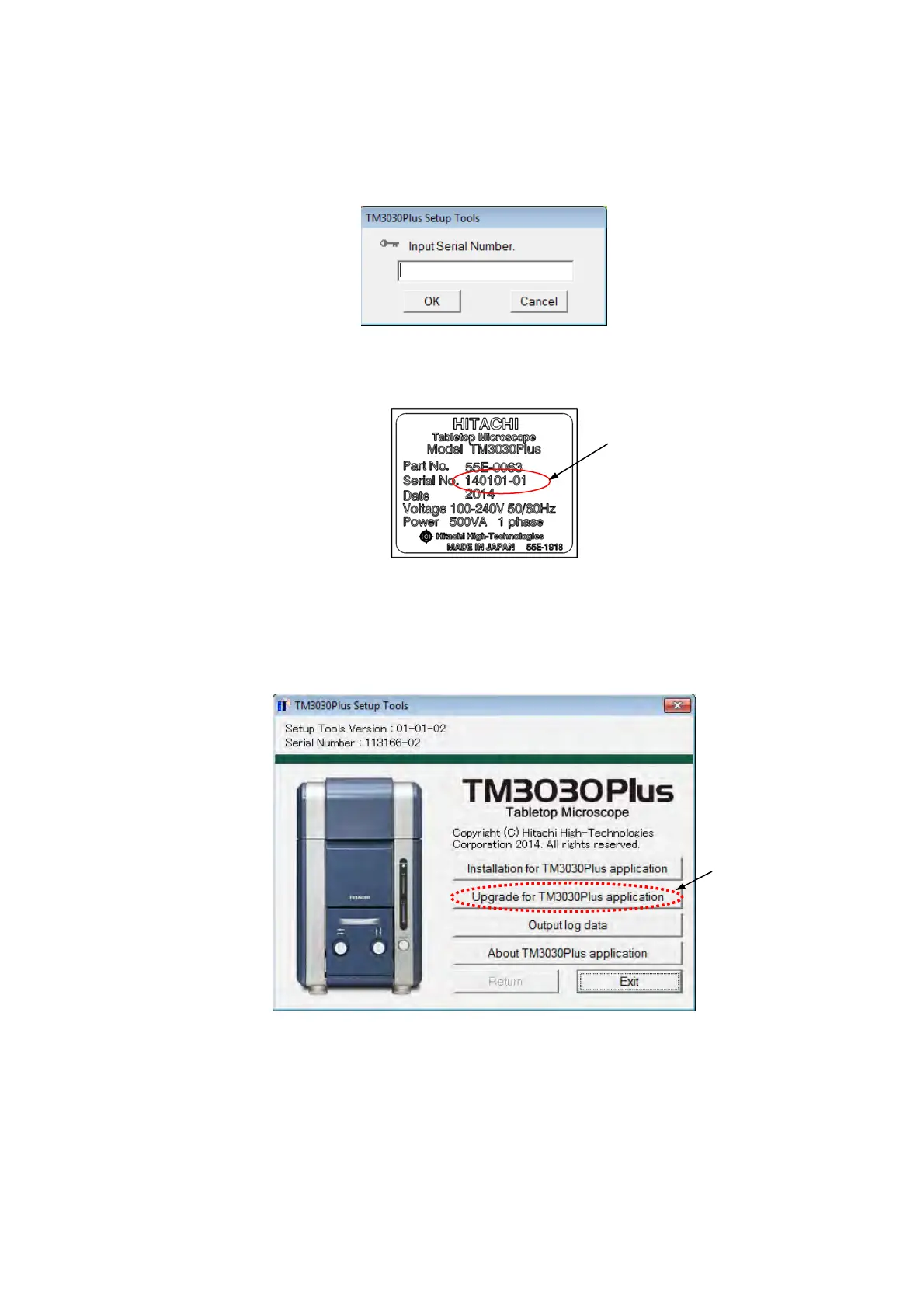

1e. The following window appears. Input Serial Number in the dialog box, and click the
[OK] button.
Serial Number is listed on the product nameplate on the back of the main unit.
Figure 2.5.1-3 Input Serial Number Dialog Box
Figure 2.5.1-4 Product Nameplate
1f. The following window appears. Click the [Upgrade for TM3030Plus application] button.
Figure 2.5.1-5 TM3030Plus Setup Tools Window (Main Menu)
Serial No.
Click
