146 / 183
Assembly and Commissioning Instructions Servo amplifier D1-N
The “scope” function also provides a function for recording value trends and then
displaying them with “Plot view”. Access this function using the “Open record win-
dow” button in the “scope” toolbar or via the “Tools” menu in the “Lightening” in-
terface.
Use
to define the number of measurements which are to be recorded.
defines the sampling rate with which the values are recorded. At the same
time, these two values determine the recording period. The recording time result-
ing from “Samples” and your chosen “Rate” is displayed in the two fields under
. Enter the variables that you want to record in the text boxes un-
der
“Variables to be recorded”
. Start the recording with the “F5” button or click
on “Start”. You can stop the recording prematurely at any time by pressing the
“Stop” button. To display the values recorded directly, click on the “Graph” button
and the current measurements are depicted in “Plot view”.

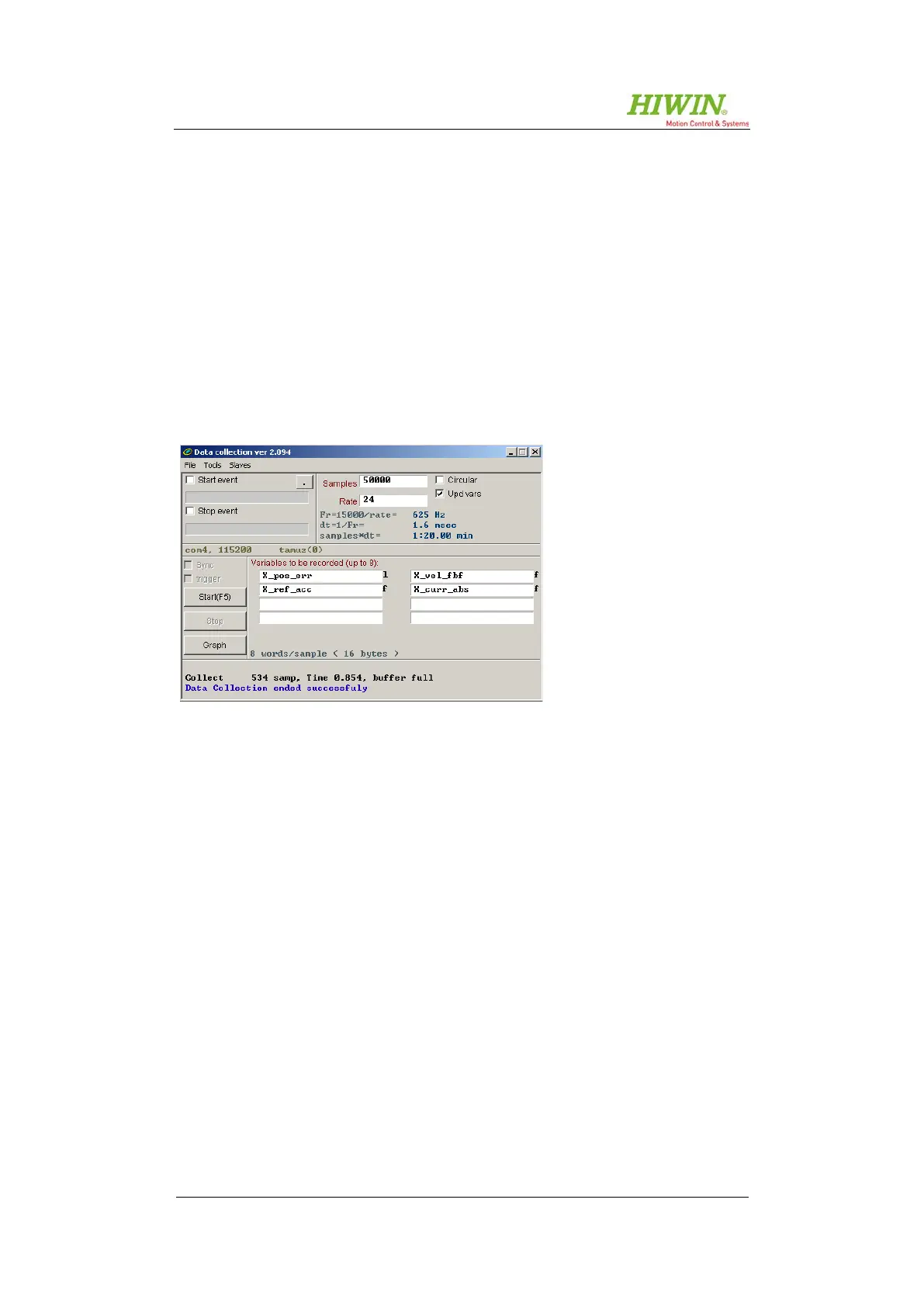

Figure 9.41: “Record window”
