In the new window, first select the curve that you want to analyse, in this case, the
position error. Select the “Direct FFT” method and press the “Run FFT” button to
start the process.

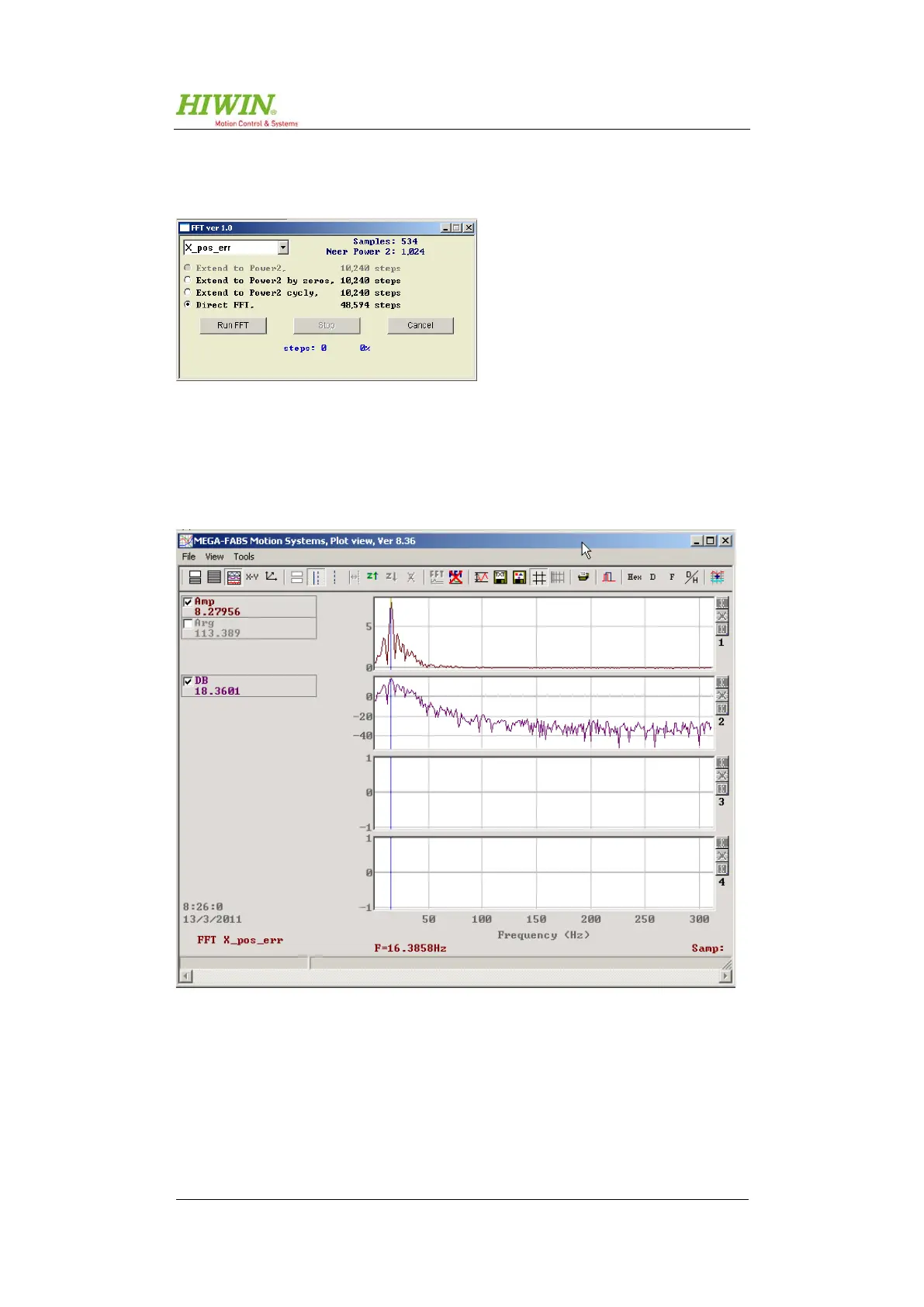

Figure 9.39: Setting up the FFT analysis
The “Plot view” tool now no longer shows the curve progress but the calculated
frequency spectrum of the FFT analysis. The proportion of all frequency elements
can be seen here.
Figure 9.40: Result of the FFT analysis
