Assembly and Commissioning Instructions Servo amplifier D1-N

15.10.2015

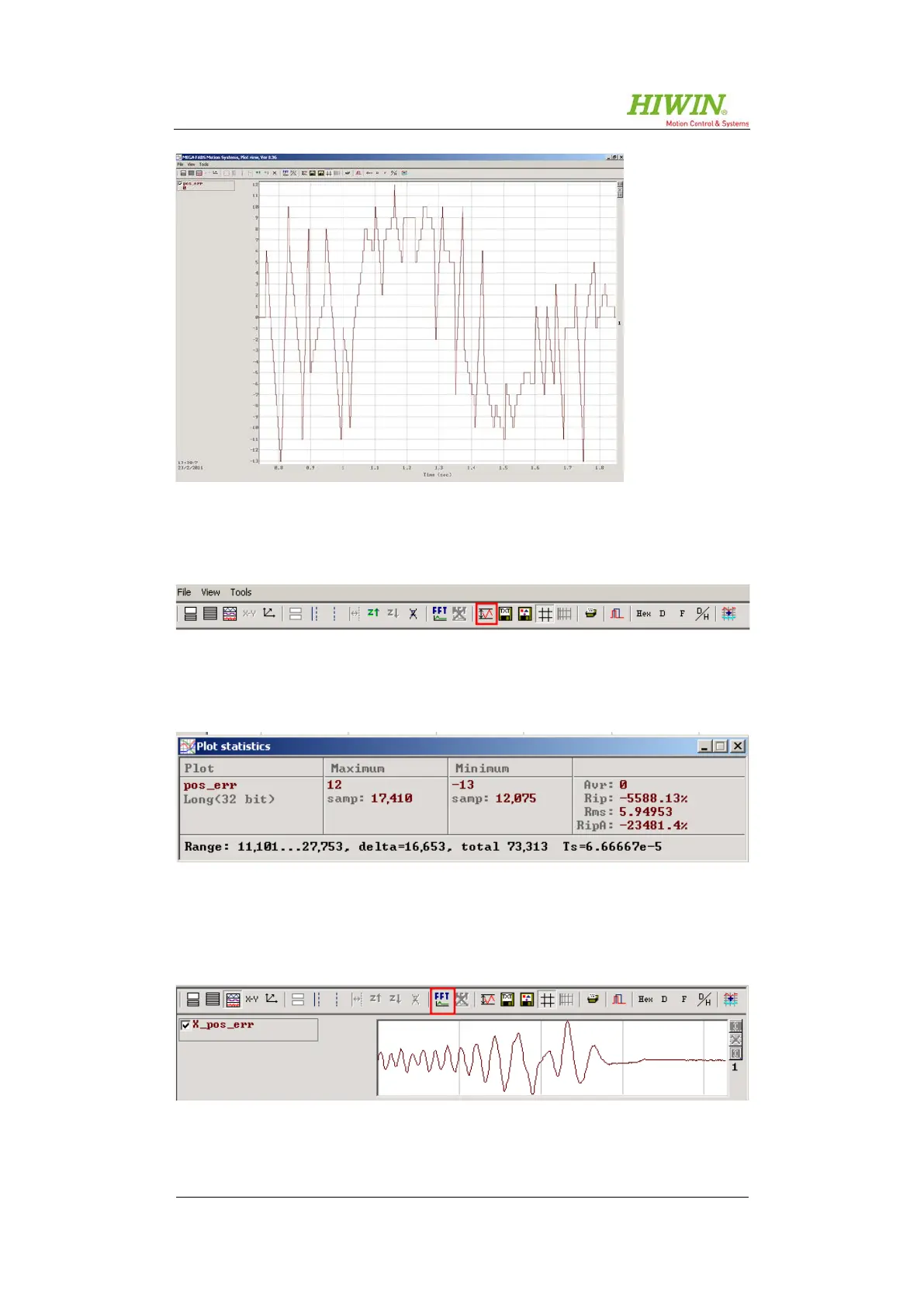

Figure 9.35: Enlarged area
The “Statistics table” button in the toolbar for the “Plot view” tool allows you to
automatically display the characteristics of the selected area.
Figure 9.36: Starting the “Statistics table”
The “Plot statistic” now automatically shows you the maximum and minimum for
the section displayed.
Figure 9.37: Statistics table
The FFT analysis allows you to determine the frequency elements occurring in a
recorded curve. To perform an FFT analysis, click on the “FFT” button in the
toolbar for the “Plot view” tool.
Figure 9.38: Starting FFT
