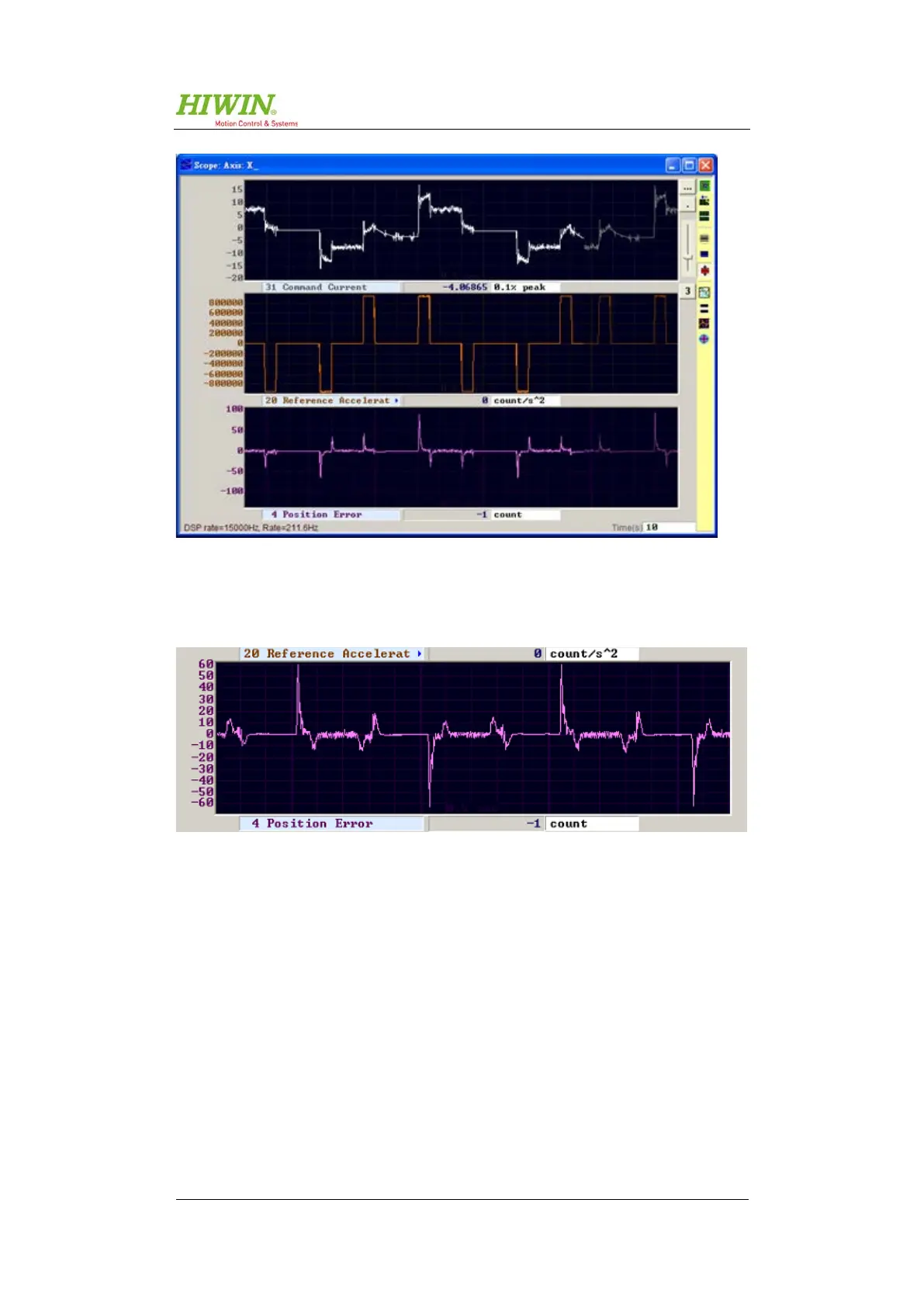

Figure 9.49: “Scope” for determining the acceleration feedforward
The position error in the acceleration was reduced from 90 to 60 counts.
Figure 9.50: Result obtained with feedforward
