Assembly and Commissioning Instructions Servo amplifier D1-N
15.10.2015

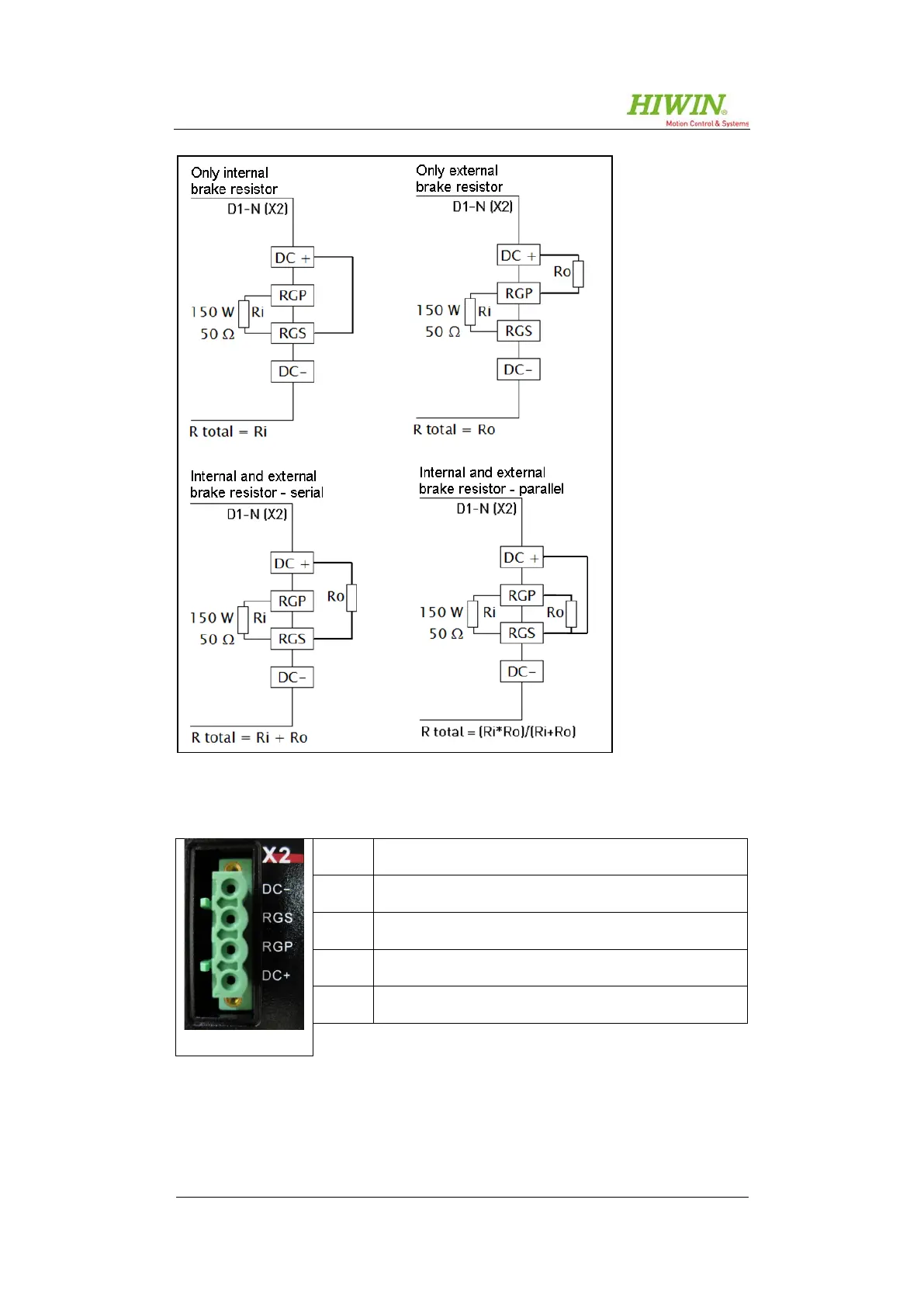

Figure 5.6: Possible connections on X2
Pin
Name
1
DC-
2
RGS
3
RGP
4
DC+
Table 5.4: X2 – brake resistor connection
