End of configuration
Once all the parameters have been selected correctly, close the “Configuration
Center” with the
“OK”
button. The parameters are listed again in a new window for
checking purposes. Changes compared with the data from the drive amplifier's
RAM are highlighted in red. To transfer the data, confirm with the
“Send to RAM”
button.

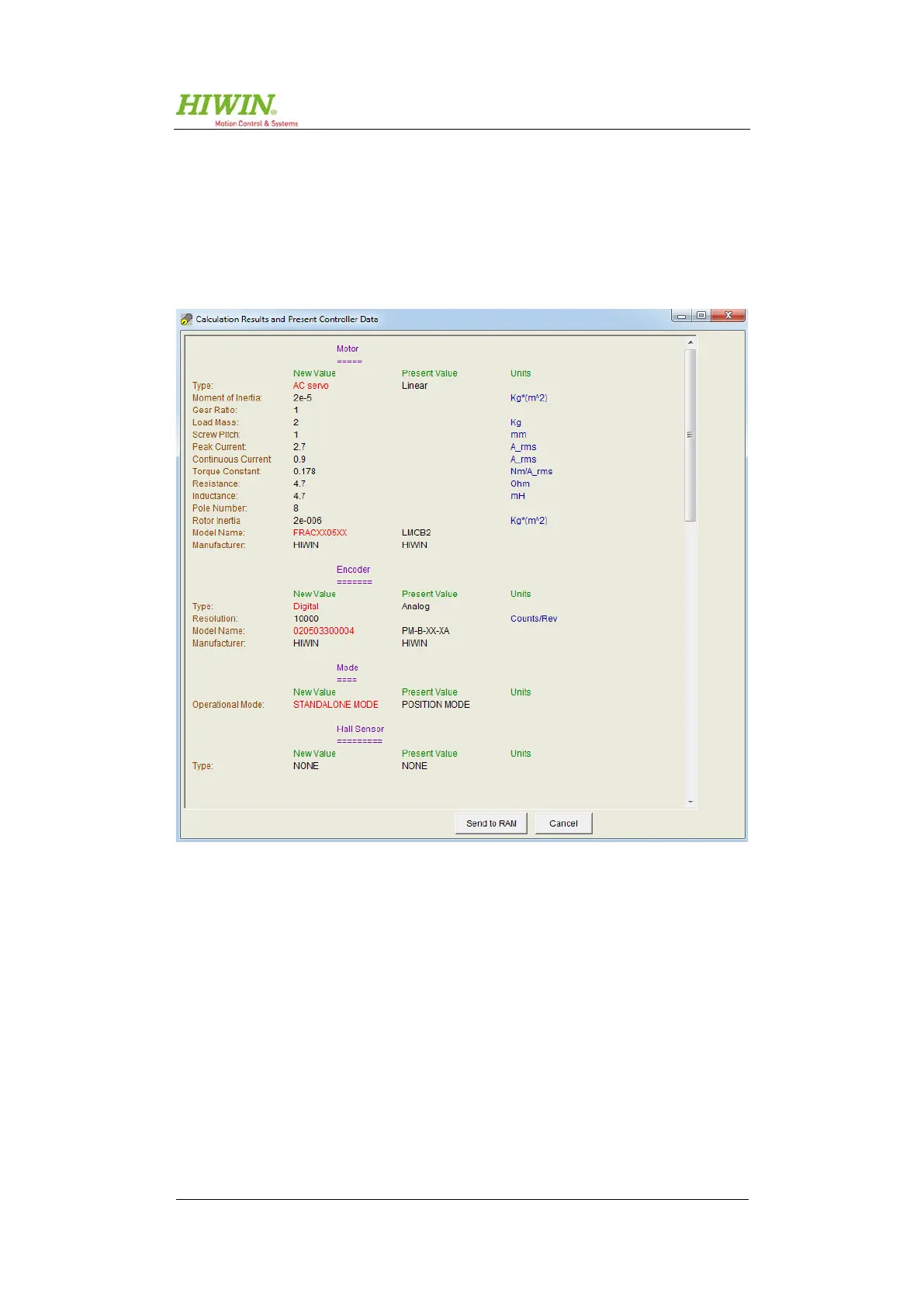

Figure 8.25: Parameter data set check
The motor and encoder settings are now saved in the drive amplifier's RAM. For
permanent storage, the changes still need to be transferred to the flash memory,
otherwise all changes will be lost in the event of a restart (see chapter 8.3.4).

