“Force/torque mode”
:
The drive amplifier receives the nominal force/torque value via I/O interface X6.
Here the nominal value can be supplied via the analogue input or via a digital input
using PWM. The setting is made in the same way as in “Velocity mode”.

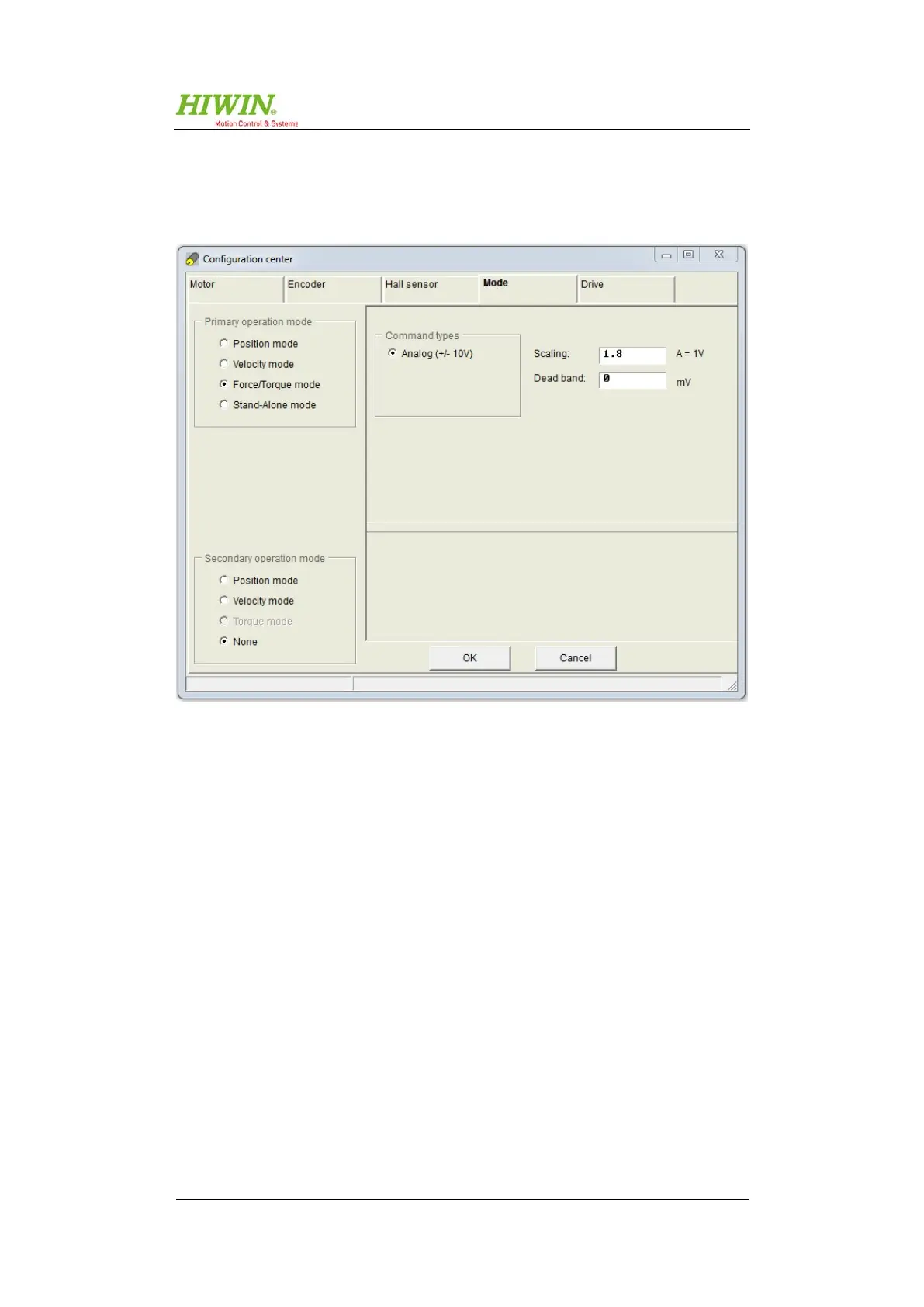

Figure 8.43: “Configuration Center” – force/torque mode
