Honda 2012 Pilot - Airbag System Components; Additional Information about Your Airbags

Additional Information About Your Airbags

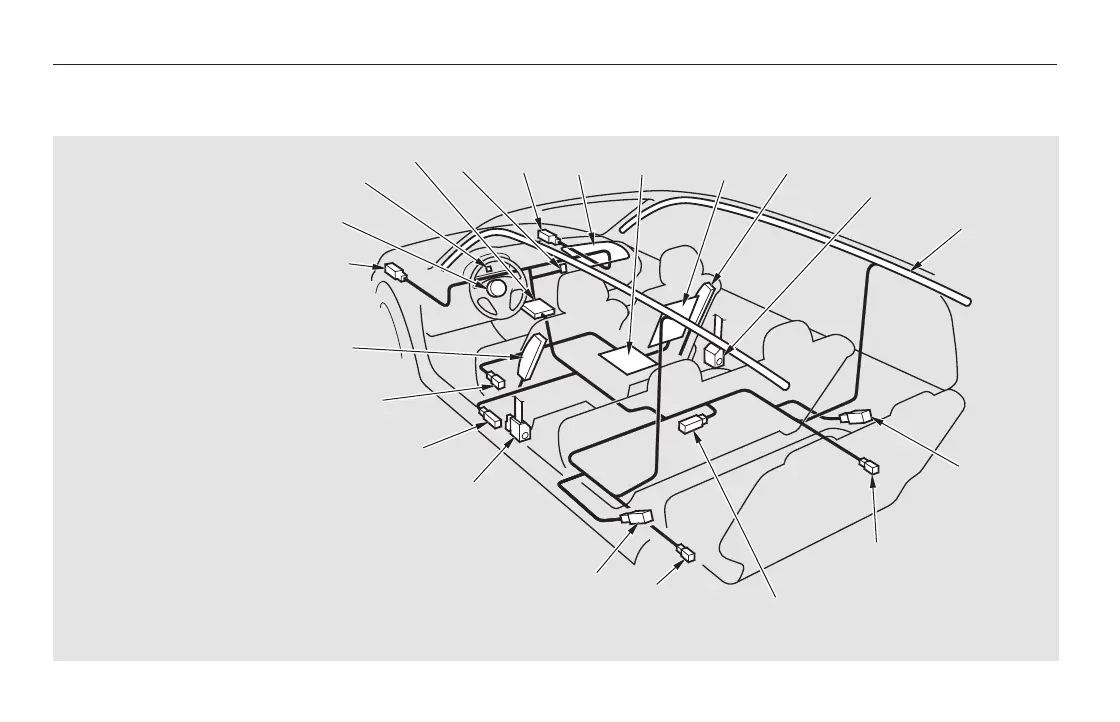

Airbag System Components
26
(5)
(2)
(1)
(6)
(4)
(5)
(10)
(4)
(8)
(12)
(13)
(15)
(16)
(15)
(7)(11)
(13)
(14)
(9)
(3)
(17)
(16)
(4) Front Seat Belt Tensioners
(5) Side Airbags
(6) Driver’s Seat Position Sensor
(7) Front Passenger’s Weight Sensors
(8) Side Impact Sensors (First)
(9) Passenger Airbag Off Indicator
(10) Occupant Position Detection System (OPDS) Sensors
(11) Front Passenger’s Weight Sensors Control Unit/
OPDS Sensors Control Unit
(12) Supplemental Restraint System (SRS) Indicator
(13) Front Impact Sensors
(14) Rear Safing Sensor
(15) Side Impact Sensors (Second)
(16) Side Impact Sensors (Third)
(17) Side Curtain Airbags
(1) Driver’s Front Airbag
(2) Passenger’s Front Airbag
(3) Control Unit/Rollover Sensor
