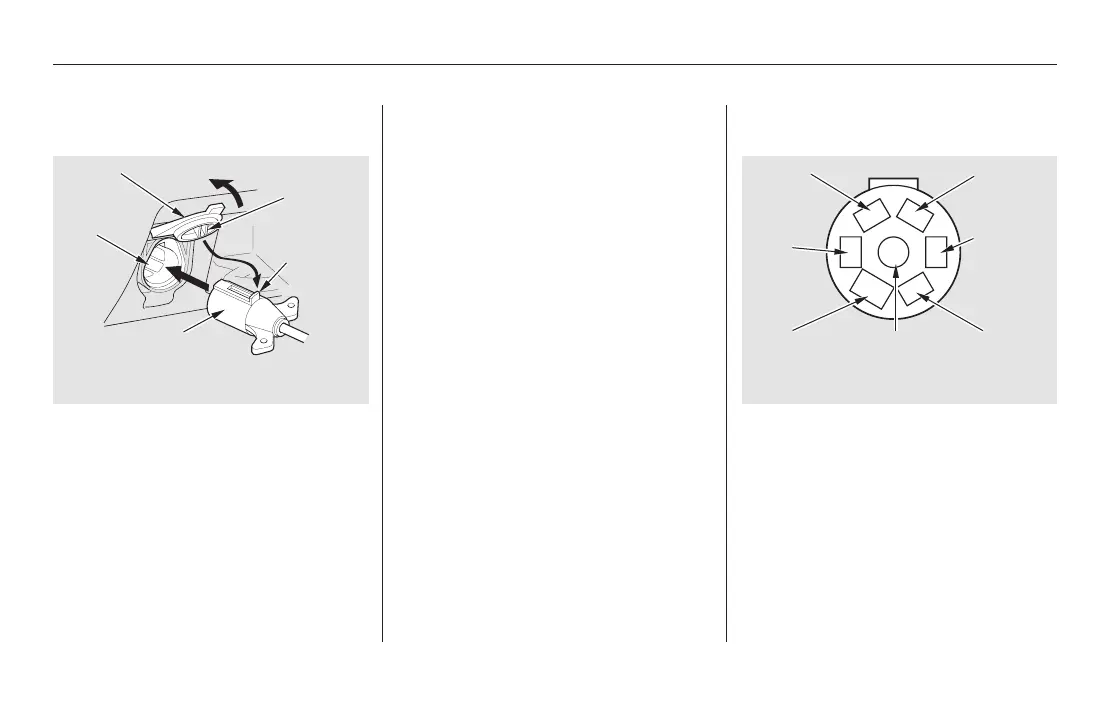

The 7-pin trailer connector is needed
for the trailer lights. To connect the
connector:
Make sure the connector and the
socketarefreeofdirt,moisture,
or other foreign material.
Open the socket lid by pulling it up.
Refer to the above illustrations for
wiring information.
Insert the connector securely into
the socket.
Hook the retaining tab on the
inner side of the lid against the
retaining tab of the connector to
prevent disconnection during
operation.
3.
1.
2.
On Touring models On Touring models
Trailer Connector SocketsConnecting the Trailer Connectors
Towing a Trailer
548
7-PIN TRAILER SOCKET
SMALL
LIGHT
(GREEN)
LEFT
TURN/
STOP
(RED)
BACK LIGHT
(YELLOW)
B
CHARGE
(BLUE)
RIGHT
TURN/
STOP
(WHITE)
ELECTRIC
BRAKE
(BROWN/
WHITE)
GROUND
(BLACK)
7-PIN TRAILER CONNECTOR
RETAINING
TAB
LID
SOCKET
RETAINING
TAB
7-PIN TRAILER
CONNECTOR
