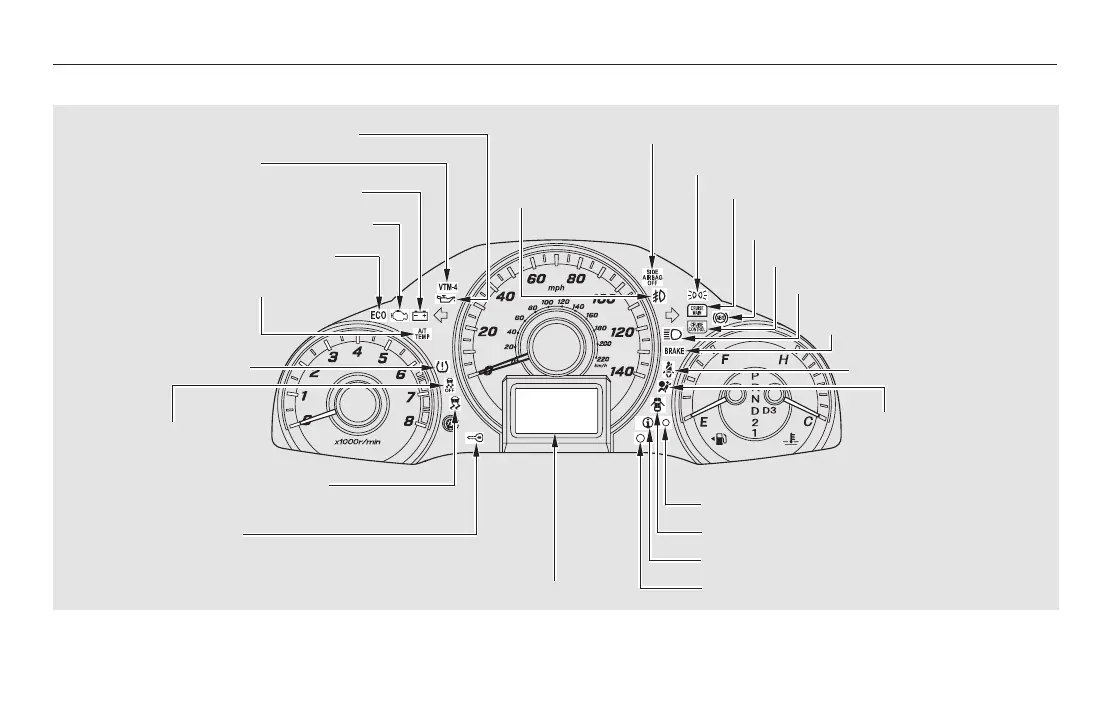

The U.S. instrument panel is shown. Differences for the Canadian models are noted in the text.
: 4WD models only
Instrument Panel
On Touring models
66
CRUISE MAIN INDICATOR
FOG LIGHT
INDICATOR
DOOR-OPEN INDICATOR
MESSAGE INDICATOR
SECURITY SYSTEM INDICATOR
IMMOBILIZER SYSTEM
INDICATOR
MULTI-INFORMATION DISPLAY
LOW FUEL INDICATOR
LIGHTS ON INDICATOR
CRUISE CONTROL INDICATOR
LOW TIRE PRESSURE/
TPMS INDICATOR
SIDE AIRBAG OFF INDICATOR
A/T TEMPERATURE INDICATOR
FUEL ECONOMY INDICATOR
MALFUNCTION INDICATOR LAMP
CHARGING SYSTEM INDICATOR
VTM-4 INDICATOR
LOW OIL PRESSURE INDICATOR
VEHICLE STABILITY ASSIST (VSA)
SYSTEM INDICATOR
(P.68)
(P.75)
(P.68)
(P.68)
(P.77)
(P.74)
(P.72)
VSA OFF INDICATOR
(P.76)
(P.85)
(P.76)
(P.70)
(P.76)
(P.76)
ANTI-LOCK BRAKE SYSTEM
INDICATOR
(P.70)
(P.76)
(P.78)
(P.77)
(P.75)
(P.79)
HIGH BEAM INDICATOR
PARKING BRAKE AND BRAKE
SYSTEM INDICATOR
SEAT BELT REMINDER
INDICATOR
(P.76)
(P.69)
(P.67)
SUPPLEMENTAL
RESTRAINT SYSTEM
INDICATOR
(P.70)
(P.71)
(P.71)
