HP 1910 User Manual

253

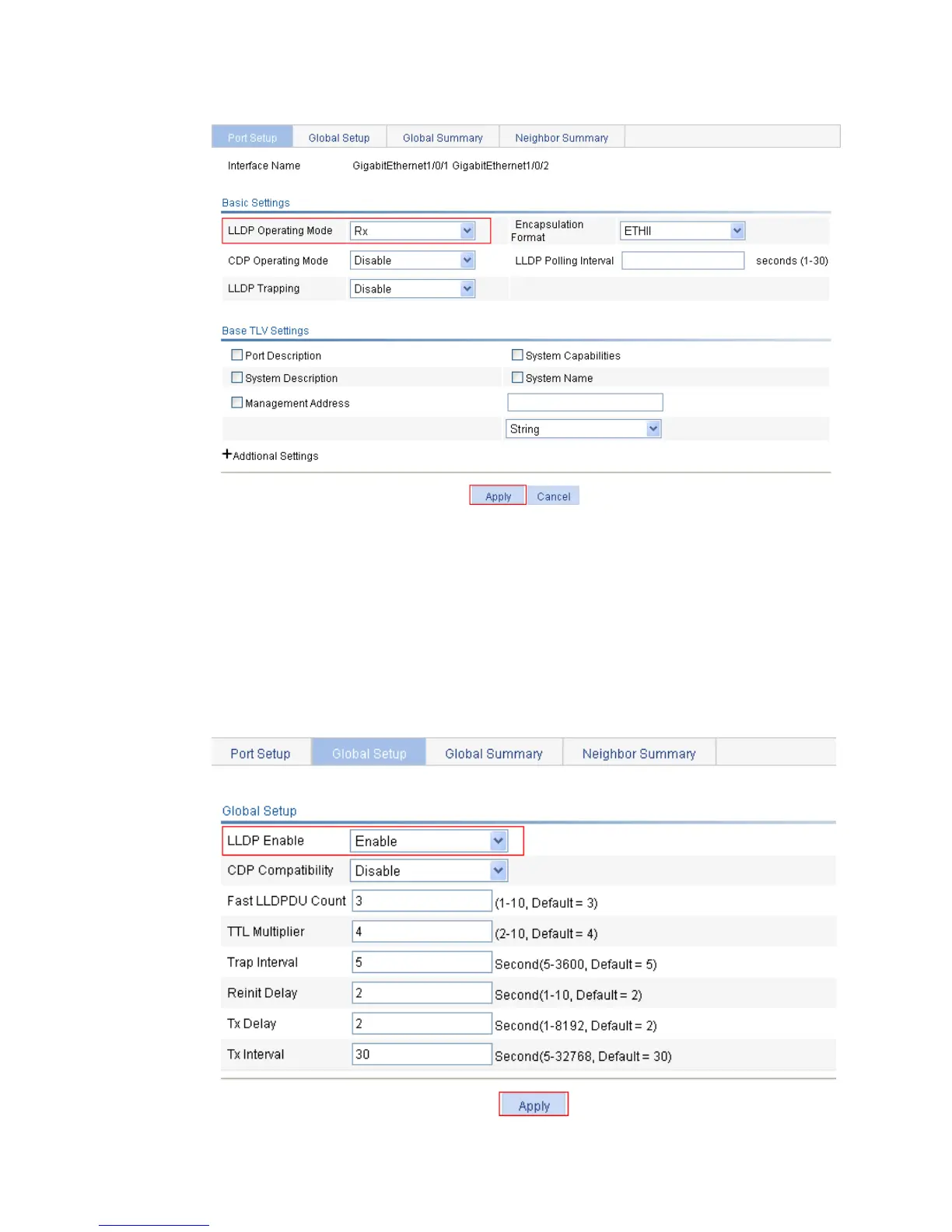

Figure 216 Setting LLDP on multiple ports
5. Enable global LLDP:
a. Click the Global Setup tab.
b. Select Enable from the LLDP Enable list.
6. Click Apply.
A progress dialog box appears.
7. Click Close on the progress dialog box when the progress dialog box prompts that the
configuration succeeds.
Figure 217 Enabling global LLDP

HP 1910 Specifications

General

Model	HP 1910
Category	Switch
Port Type	10/100/1000BASE-T
Layer	Layer 2
PoE Support	No
MAC Address Table Size	8K entries
VLAN Support	Yes
Management	Web-based GUI
Switching Capacity	56 Gbps
Forwarding Rate	41.7 Mpps
Jumbo Frame Support	Yes
Ports	24
