HP 1910 User Manual

372

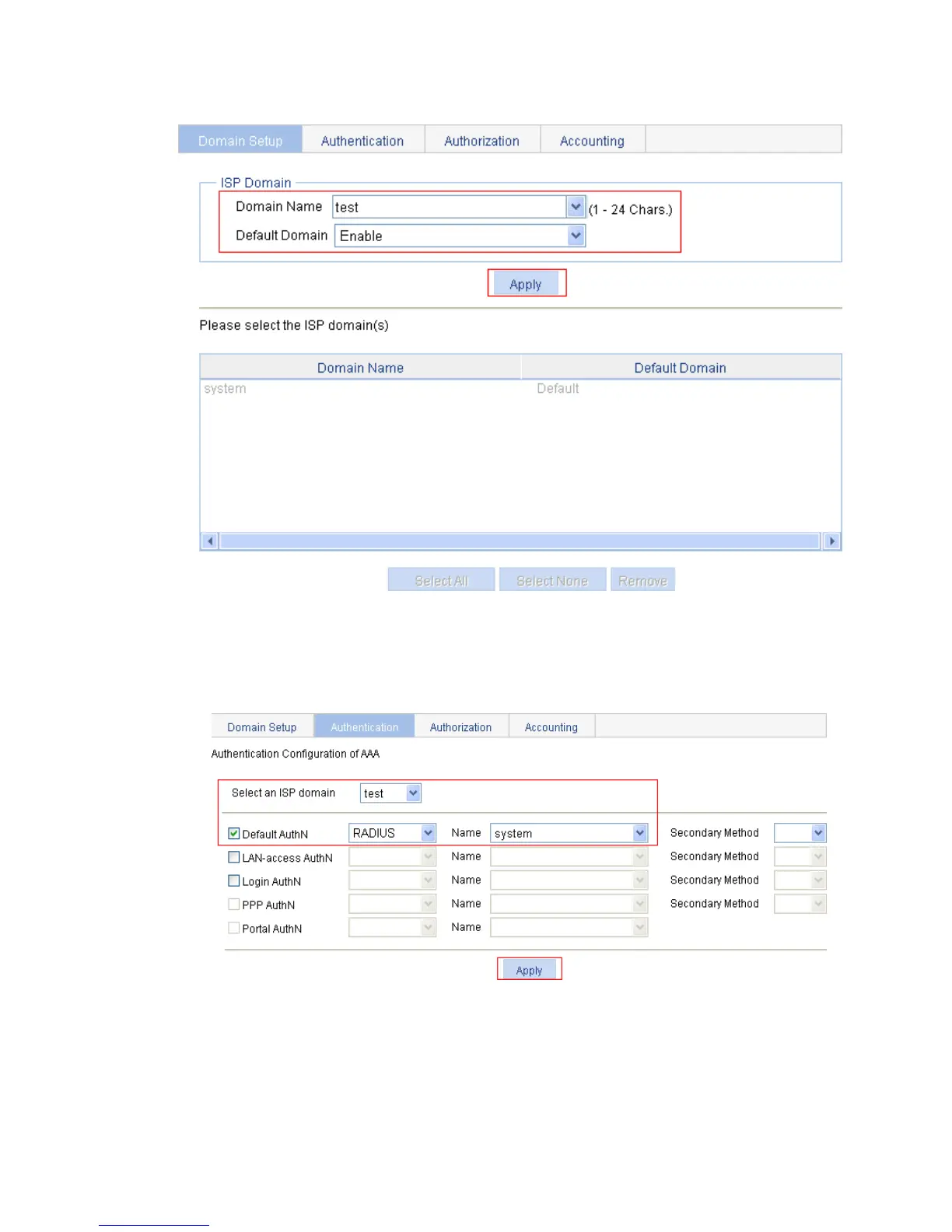

Figure 344 Creating an ISP domain
4. On the Authentication tab, select the ISP domain test, select the Default AuthN box, select the
authentication method RADIUS as mode, select the authentication scheme system from the Name
list, and click Apply.
Figure 345 Configuring the AAA authentication method for the ISP domain
A configuration progress dialog box appears, as shown in Figure 346.

HP 1910 Specifications

General

Model	HP 1910
Category	Switch
Port Type	10/100/1000BASE-T
Layer	Layer 2
PoE Support	No
MAC Address Table Size	8K entries
VLAN Support	Yes
Management	Web-based GUI
Switching Capacity	56 Gbps
Forwarding Rate	41.7 Mpps
Jumbo Frame Support	Yes
Ports	24
