HP 1910 User Manual

373

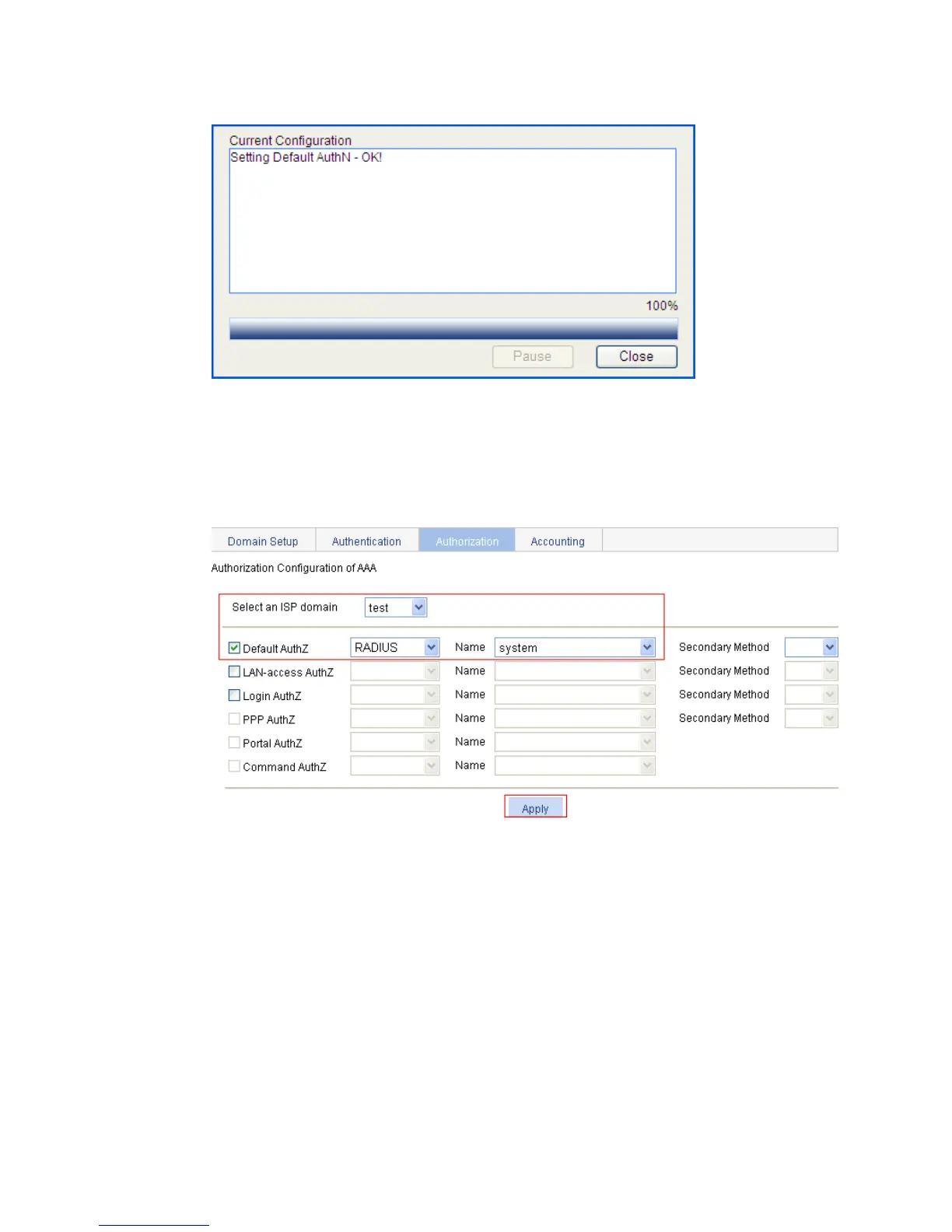

Figure 346 Configuration progress dialog box
5. After the configuration process is complete, click Close.
6. On the Authorization tab, select the ISP domain test, Select the Default AuthZ box, select the
authorization method RADIUS, select the authorization scheme system from the Name list, and
click Apply.
Figure 347 Configuring the AAA authorization method for the ISP domain
7. After the configuration process is complete, click Close.
8. On the Accounting tab, select the domain name test, select the Accounting Optional box, select
Enable from the list, select the Default Accounting box, select the accounting method RADIUS,
select the accounting scheme system from the Name list, and click Apply.

HP 1910 Specifications

General

Model	HP 1910
Category	Switch
Port Type	10/100/1000BASE-T
Layer	Layer 2
PoE Support	No
MAC Address Table Size	8K entries
VLAN Support	Yes
Management	Web-based GUI
Switching Capacity	56 Gbps
Forwarding Rate	41.7 Mpps
Jumbo Frame Support	Yes
Ports	24
