HP 1910 User Manual

374

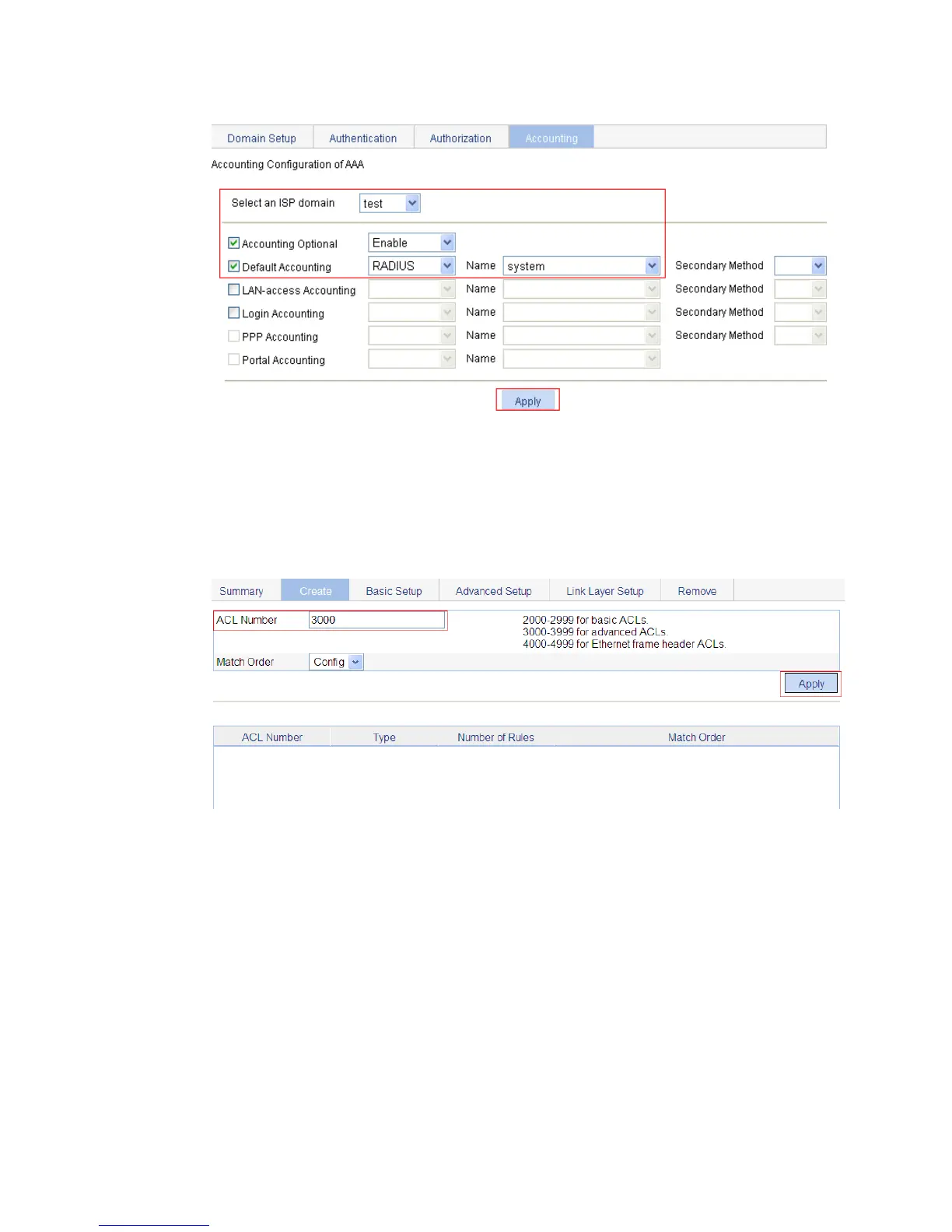

Figure 348 Configuring the AAA accounting method for the ISP domain
9. After the configuration process is complete, click Close.
Configuring an ACL
1. From the navigation tree, select QoS > ACL IPv4.
2. On the Create tab, enter the ACL number 3000, and click Apply.
Figure 349 Creating ACL 3000
3. On the Advanced Setup tab, configure an ACL rule:
a. Select 3000 from the ACL list.
b. Select the Rule ID box, enter the rule ID 0, and select the action Deny.
c. In the IP Address Filter area, select the Destination IP Address box, enter 10.0.0.1 in the field,
and enter 0.0.0.0 in the Destination Wildcard field.
d. Click Add.

HP 1910 Specifications

General

Model	HP 1910
Category	Switch
Port Type	10/100/1000BASE-T
Layer	Layer 2
PoE Support	No
MAC Address Table Size	8K entries
VLAN Support	Yes
Management	Web-based GUI
Switching Capacity	56 Gbps
Forwarding Rate	41.7 Mpps
Jumbo Frame Support	Yes
Ports	24
