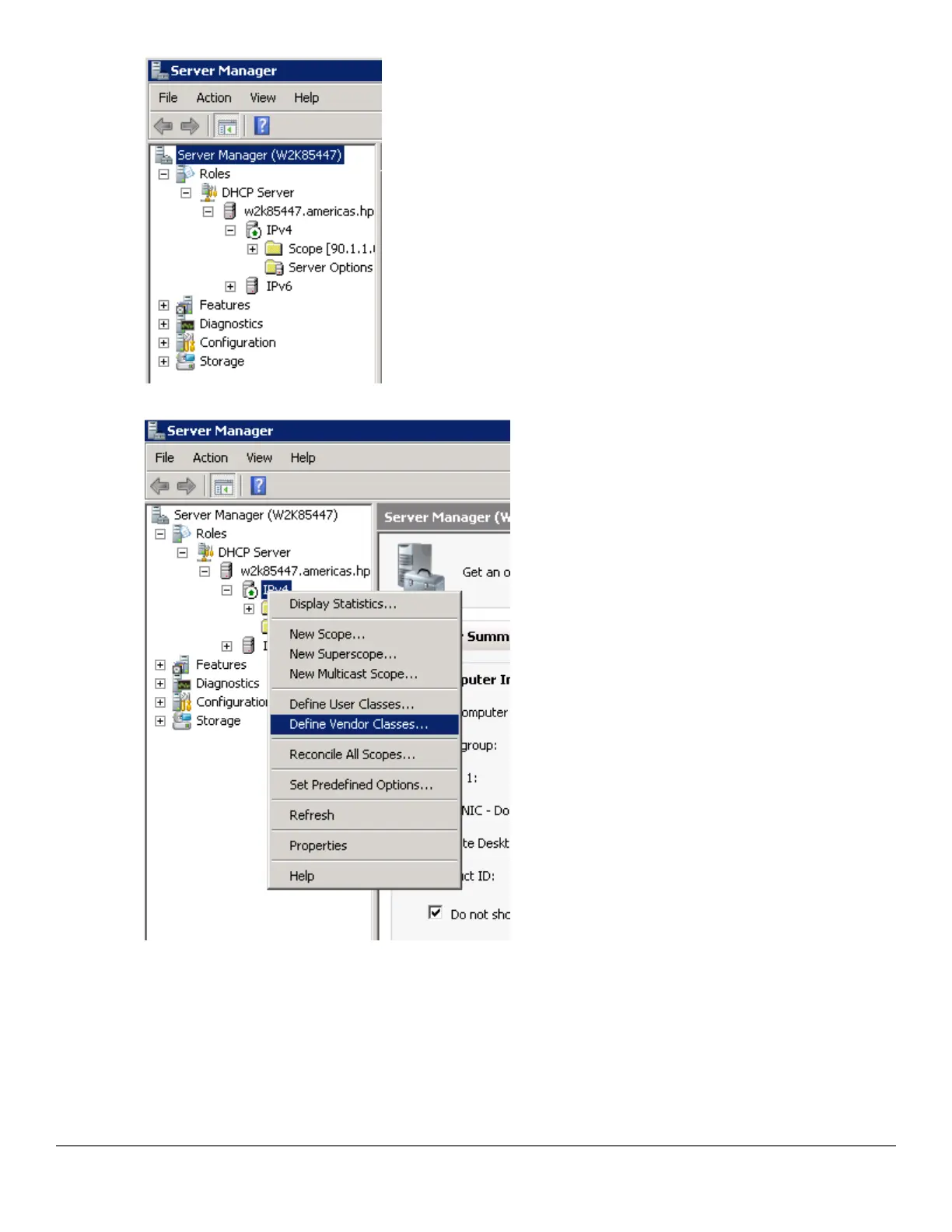

3. Right-click IPv4 and select Define Vendor Classes....

4. The DHCP Vendor Classes window is displayed. Click Add....

Chapter 10 Zero Touch Provisioning with AirWave and Central 303
