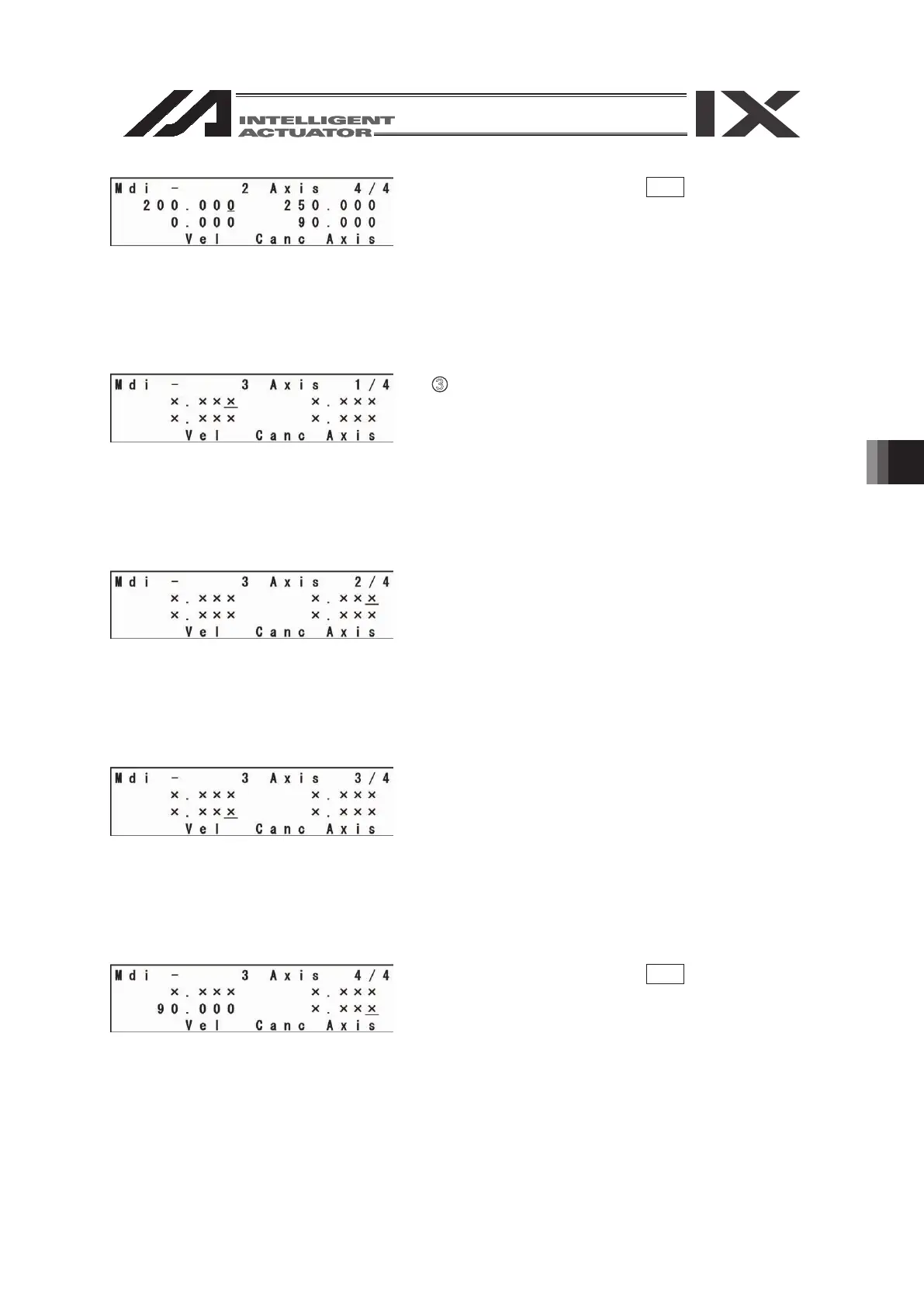

7. Simple Operation Procedure

Transfer the data with the WRT key and advance

the position No. to 3.

③

Data input for 3rd point

Press the return key since the X-axis position

data is left blank.

Press the return key since the Y-axis position data

is also left blank.

Enter 90 for the Z-axis position data and press

the return key.

Transfer the data with the WRT key and advance

the position No. to 4.
