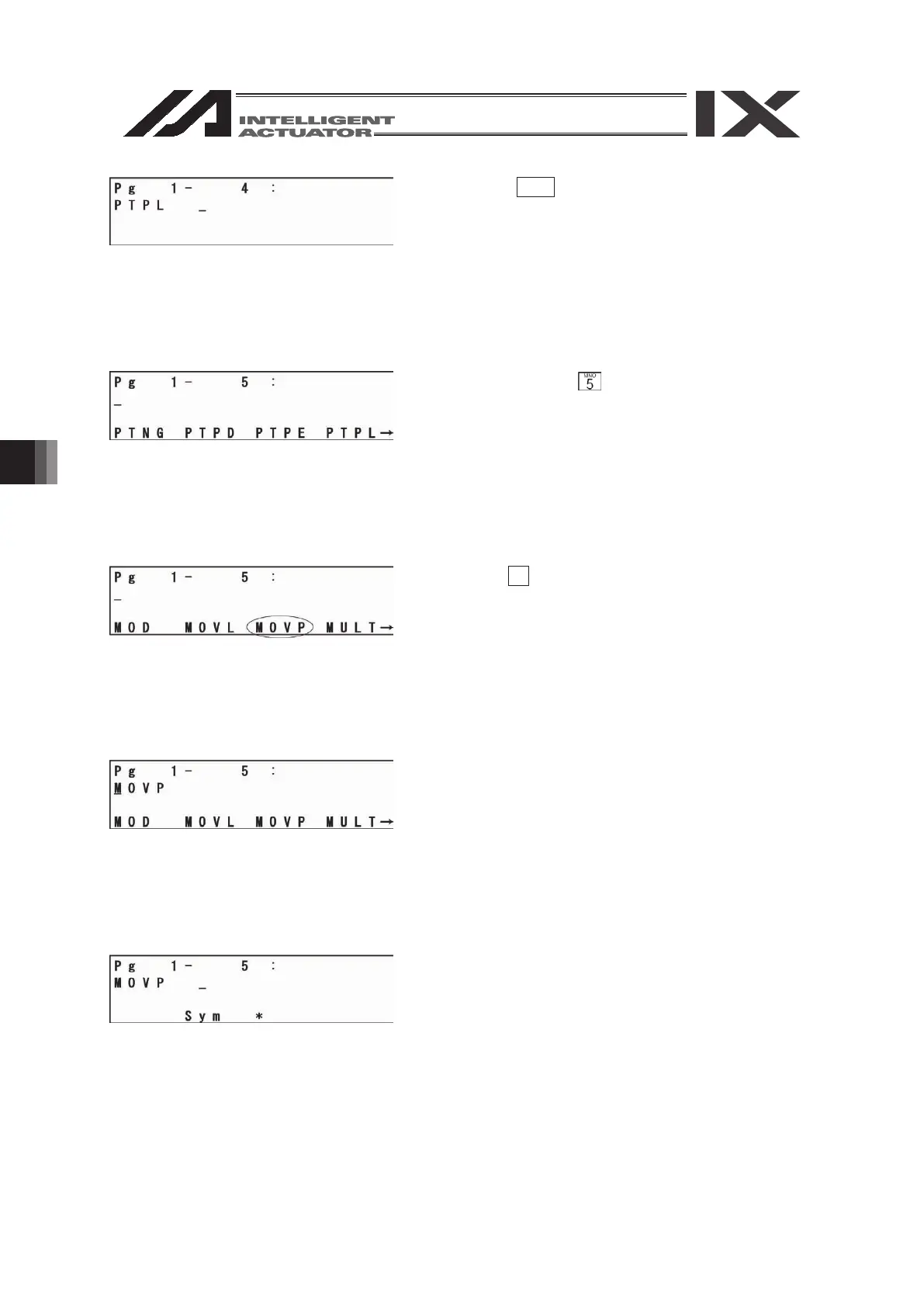

7. Simple Operation Procedure

Press the WRT key to transfer the data to the

controller.

The step No. advances to 5.

Display MOVP with

of the 10 key.

Select the F3 (MOVP) key.

Press the return key.

The cursor moves to operation 1.

Enter 1 of the position No. 1 and press the return

key.
