7. Simple Operation Procedure
102
92

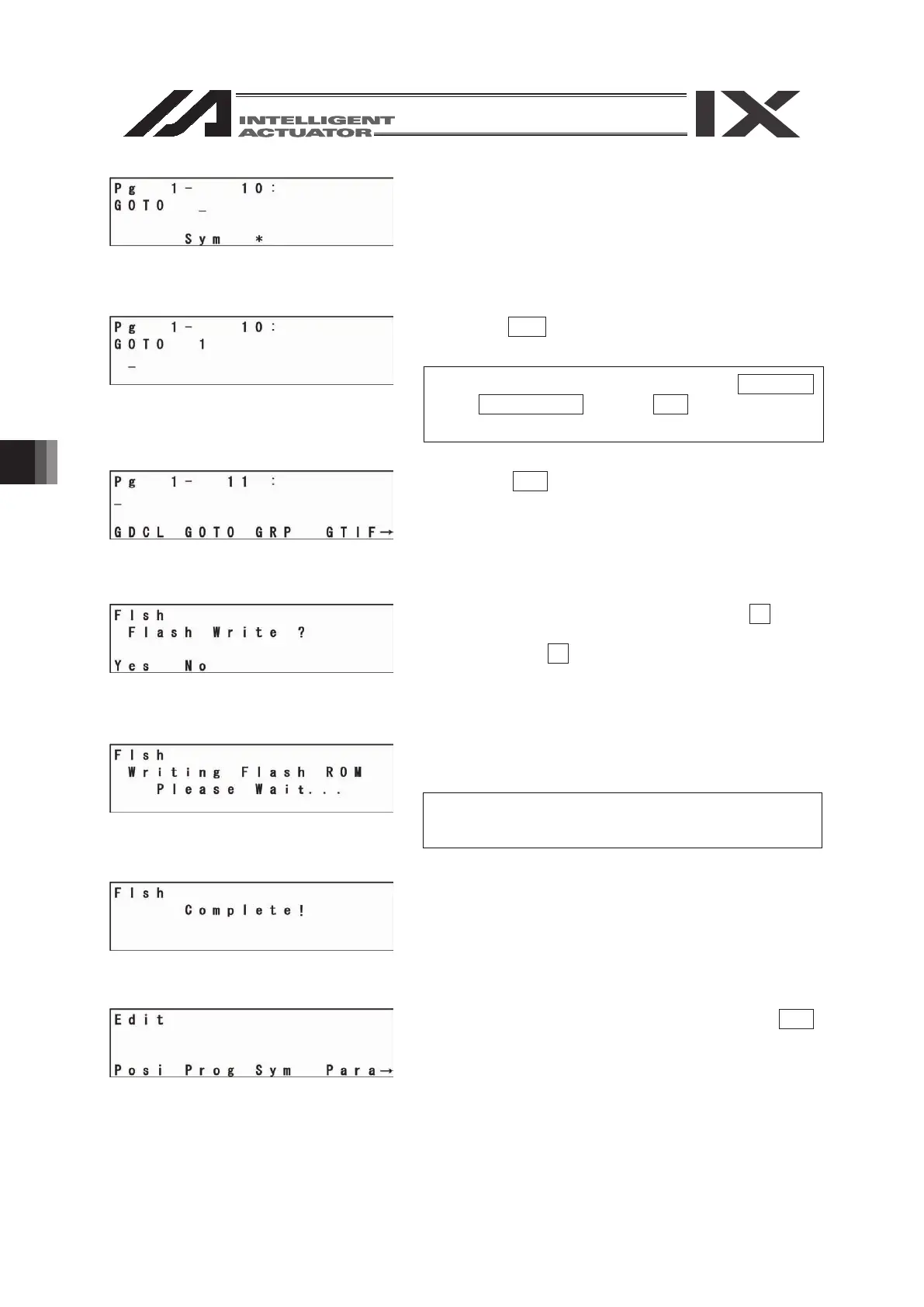

Enter the same numerical value as the one input for
“TAG” operation 1 for operation 1. Enter 1 here and
press the return key.
Press the WRT key to transfer the program data to
the controller.
* When the screen is changed with the PAGE UP
and PAGE DOWN keys or ESC key before data
transfer, the input data becomes invalid.
Press the ESC key several times to move to the
Flash ROM writing screen.
To write the data in Flash ROM, press the F1 (Yes)
key.
If not, press the F2 (No) key.
The message “Please wait…” flashes during Flash
ROM writing.
* Never turn off the power to the controller at this
time.
Flash ROM writing is completed.
Return to the edit mode screen by pressing the ESC
key.

IAI SEL Specifications

General

Protection Class	IP20
Communication	RS-232C
Control Method	PTP
Number of Axes	Up to 4 axes
Vibration Resistance	4.9 m/s² (0.5 G)
Humidity	20 to 85% RH (non-condensing)
