IAI SEL User Manual

10. Position Edit
112
102

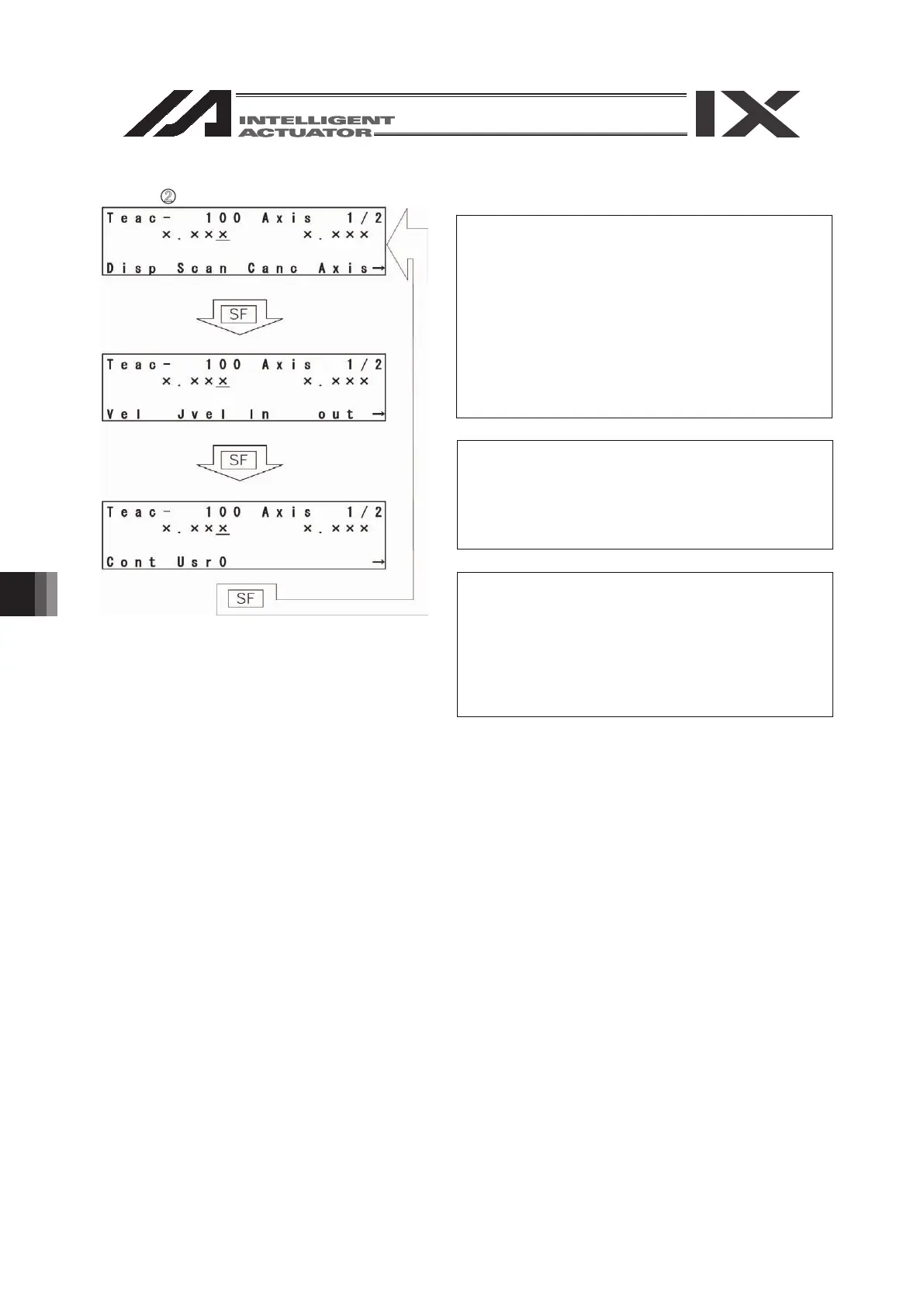

Description of the function key
F1(Disp): Switch the input data screen to the
current position display.
F2(Scan): Take the current position of the
axis at which the cursor is located
into the input screen.
F3(Canc): Clear the input data.
F4(Axis): Switch the 1st to 4th axes display
screen to the 5th and 6th axes
display screen.
(Effective for 5 axes or more)
F1(Vel): Input the data of velocity, etc., to
each position No.
F2(JVel): Set the jog velocity, etc.
F3(In): Monitor the input port.
F4(Out): Monitor the output port.
② Each-axis Data Input Screen
F1(Cont): Move to the continuance transition
mode.
F2(UsrO): Turn ON/OFF the output ports
(sequential 8 points at the
maximum set to parameters).
(It is required to preset the I/O
parameters No. 74 and No. 75.)

IAI SEL Specifications

General

Protection Class	IP20
Communication	RS-232C
Control Method	PTP
Number of Axes	Up to 4 axes
Vibration Resistance	4.9 m/s² (0.5 G)
Humidity	20 to 85% RH (non-condensing)
