(3) Take in the current position as a data
Input the position No. into which data is taken with
10 keys on the position No. select screen and press
the return key.
Or select position No. into which data is taken with
the PAGE UP · PAGE DOWN keys on the data input
screen.

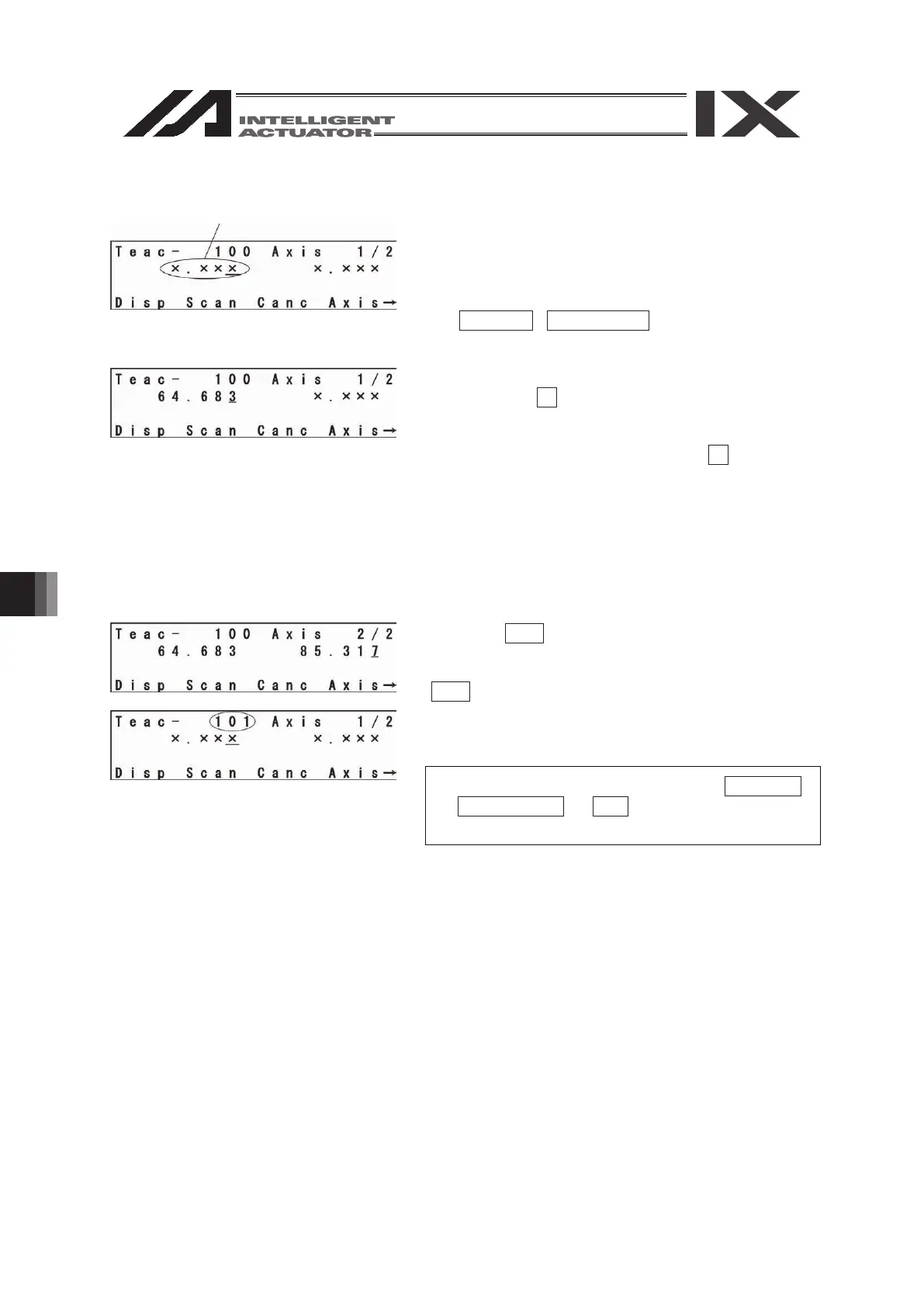

Take in the current position data of all axes by
pressing the F2 (Scan) key on the position No.
selection screen.
Take in the current position data of the axis where
the cursor is located by pressing the F2 (Scan) key
on the each-axis data input screen. (The data is
executed per axis. The diagram on the left is for
taking in data on the each-axis data input screen.
(4) Transmit to the Controller
Transmit the taken-in data to the controller.
Press the WRT key in the teaching screen condition.
Save the taken-in data to the controller memory.
Position No. will be increased 1 by pressing the
WRT key.
You can only transmit 1 screen of data to the
controller. You can’t transmit plural position No. data
at one time.
* If you change the screen with the PAGE UP ·
PAGE DOWN or ESC keys before transmitting
the data, the input data will be invalid.
Take the selected actuator’s location as position data into the teaching screen.
