9

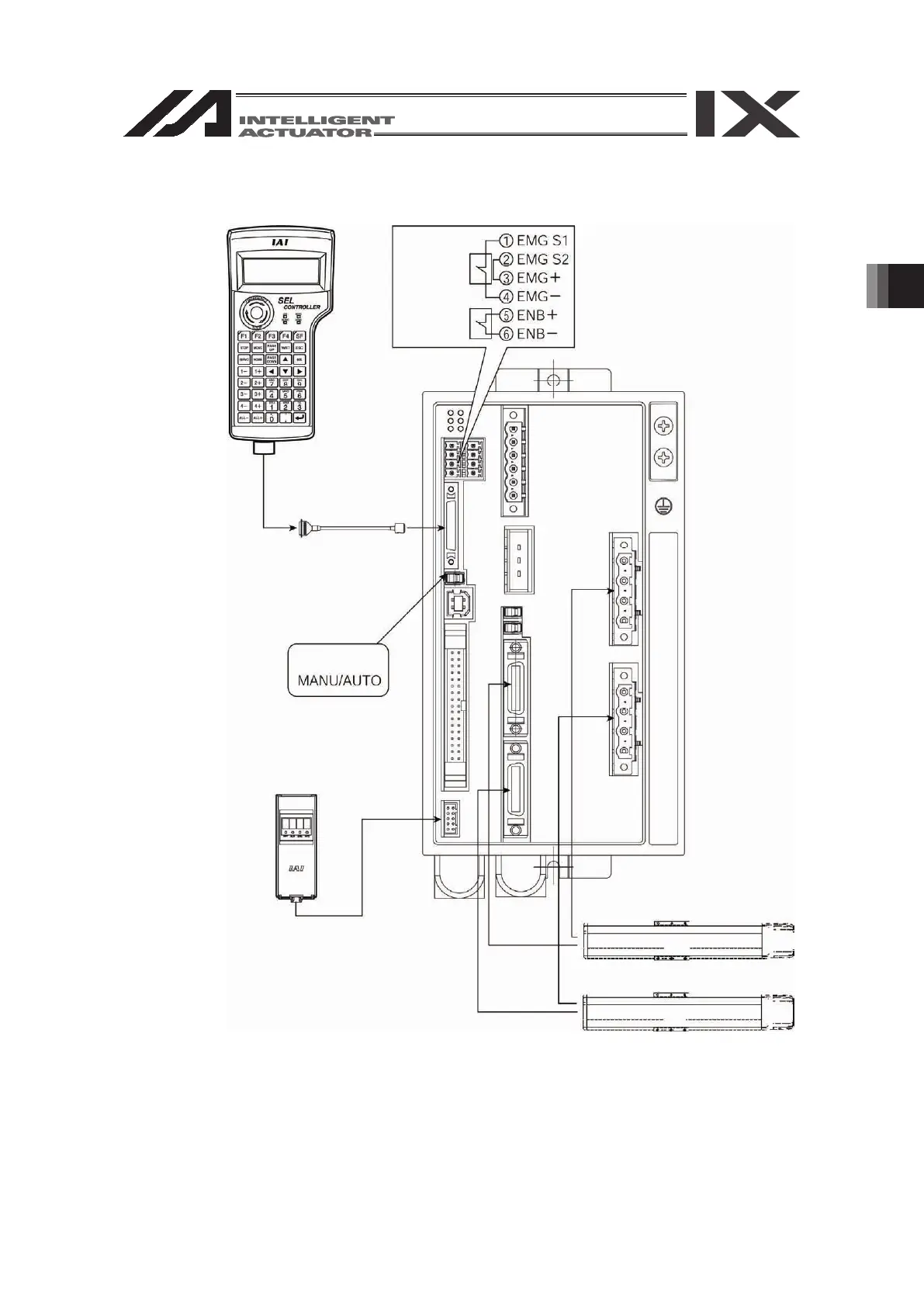

3. Connection to Controller

9

10

SSEL Type Controller

Mode Switch

Emergency

Stop Switch

Enable

Switch

Replacement

Cable

SSEL-CS : CB-SEL-SJS002

SSEL-C : CB-SEL-SJ002

Panel Unit

2-axis

1-axis

（Note）SEL-T-JS: Teaching

Pendant with

Replacement

Cable Dedicated for

SSEL-CS
