IAI SEL User Manual

279
17. Gateway Function Associated
279
②

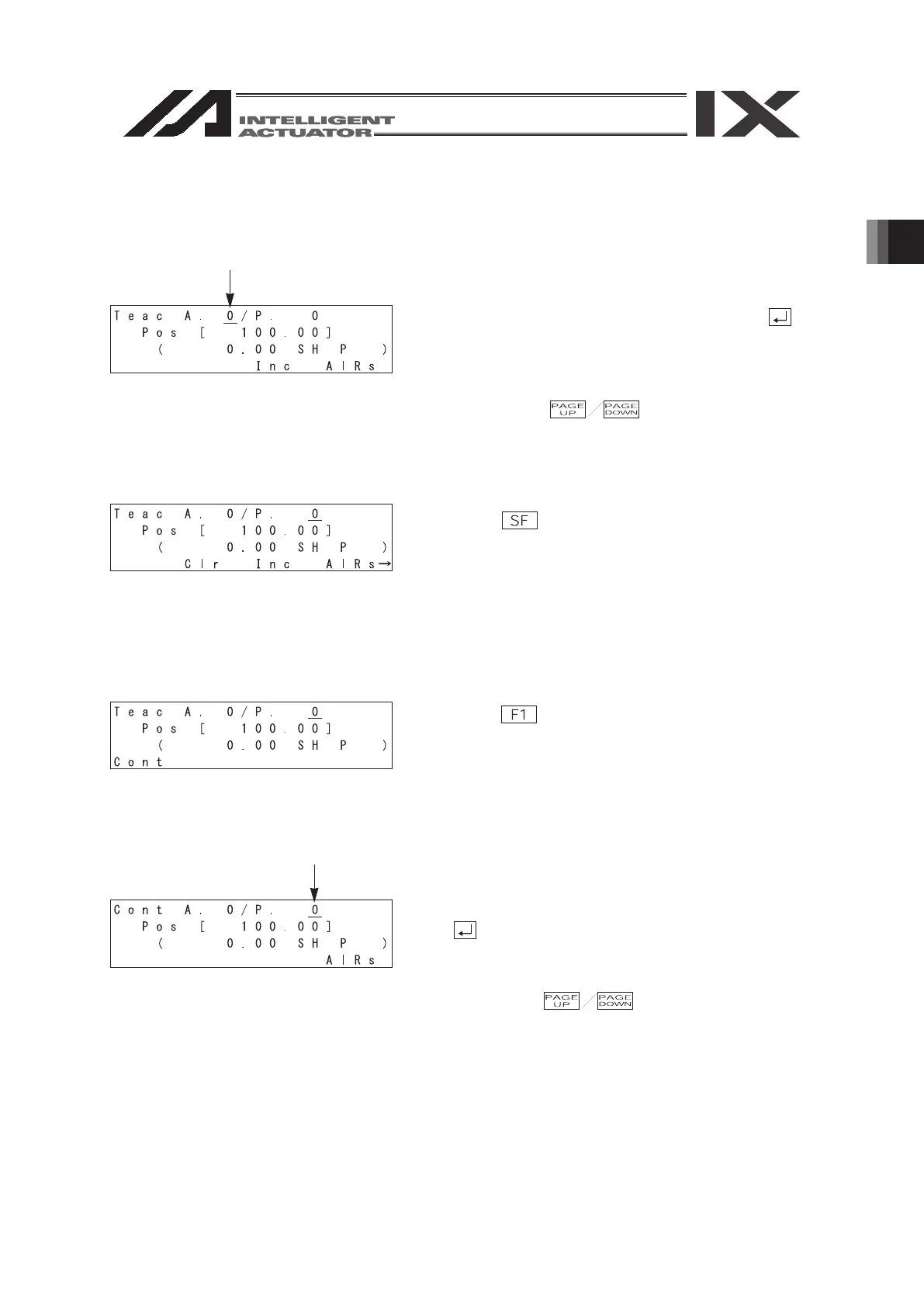

Continuous Movement
The RC actuator automatically follows the position corresponding to the position data
transferred to the controller.
Axis No.
Position No.
Select the Axis No. to be moved and press the
key.
* The selection of the Axis No. is performed using
the ten-key or key.
Press the key.
Press the key (Cont).
Select the movement starting Position No. and press
the key.
* The selection of the Position No. is performed using
the ten-key or key.

IAI SEL Specifications

General

Protection Class	IP20
Communication	RS-232C
Control Method	PTP
Number of Axes	Up to 4 axes
Vibration Resistance	4.9 m/s² (0.5 G)
Humidity	20 to 85% RH (non-condensing)
