(6) Position Check
When the RC actuator is moved to the place corresponding to the taught position data, the
position check can be performed.

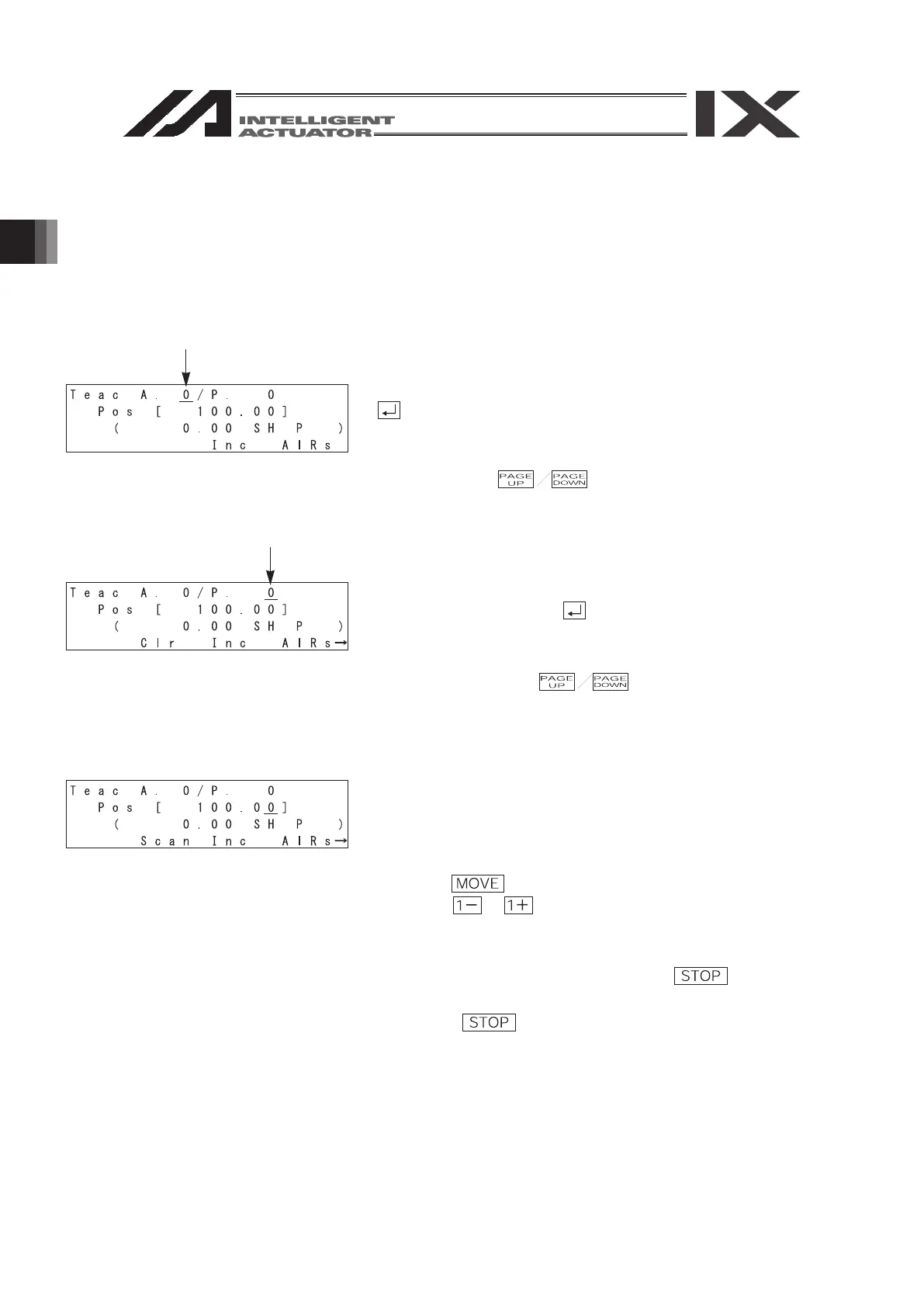

①
Movement
Move the RC actuator to the position corresponding to the position data transferred to the
controller.
Axis No.
Position No.
Select the Axis No. to be moved and press the
key.
* The selection of the Axis No. is performed using
the ten-key or key.
Select the Position No. to which the actuator is
moved and the press the key.
* The selection of the Position No. is performed
using the ten-key or key.
Turn the servo-motor ON.
Perform the home return operation.
Press the key.
When the or key is pressed after the
MOVE LED is turned ON, the axis movement is
started.
When it is stopped on the way, press the key.
* When the key is pressed, the “processing
for the stop operation” is performed to all the
effective axes.

IAI SEL Specifications

General

Protection Class	IP20
Communication	RS-232C
Control Method	PTP
Number of Axes	Up to 4 axes
Vibration Resistance	4.9 m/s² (0.5 G)
Humidity	20 to 85% RH (non-condensing)
