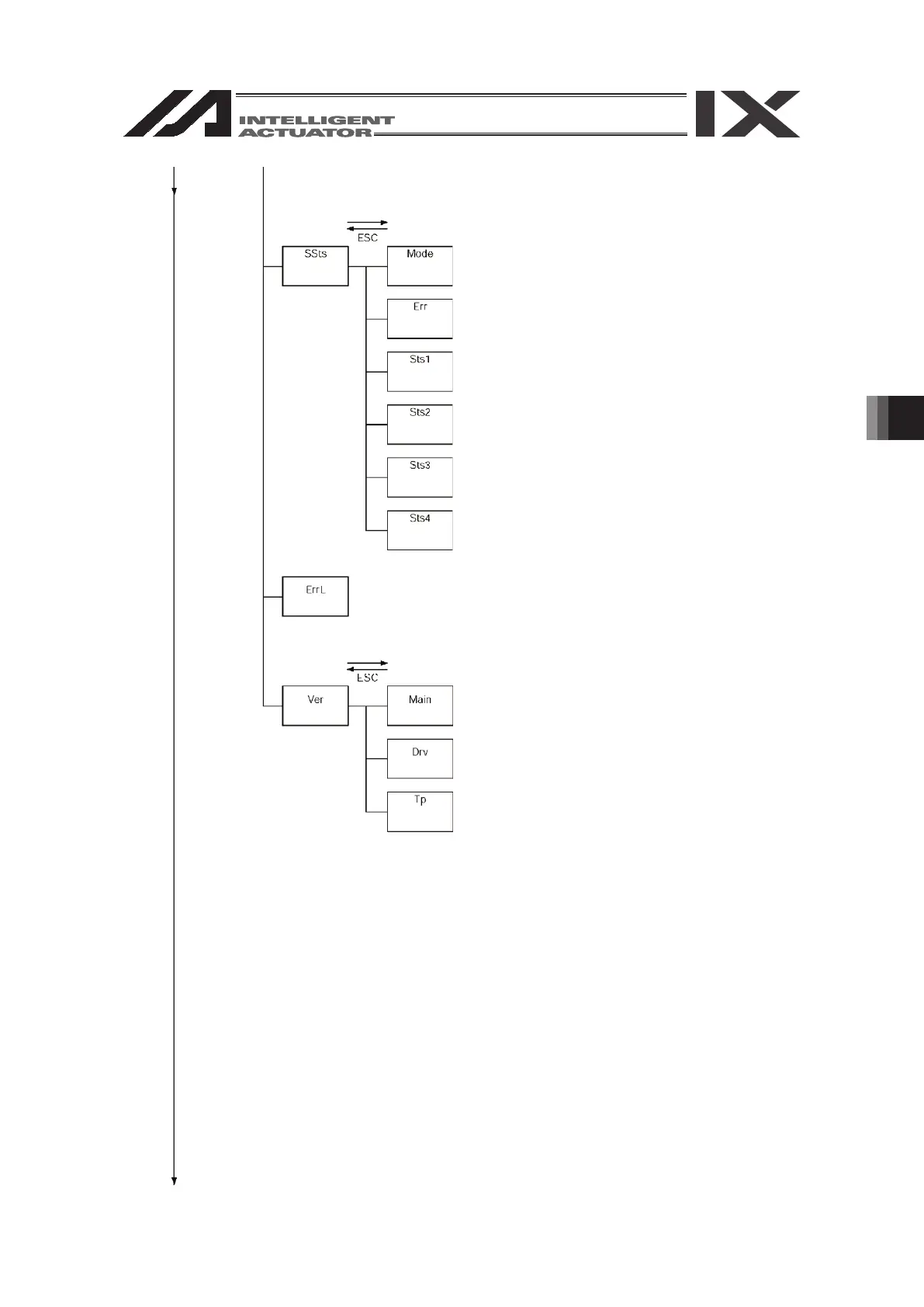

6. Mode Transition Diagram

(System status) (System mode)

Function key

(System status 1)

(System error)

Function key

(Error list)

(System status 2)

(System status 3)

(System status 4)

(Version) (CTL main)

(Teaching

pendant)

(Driver)
