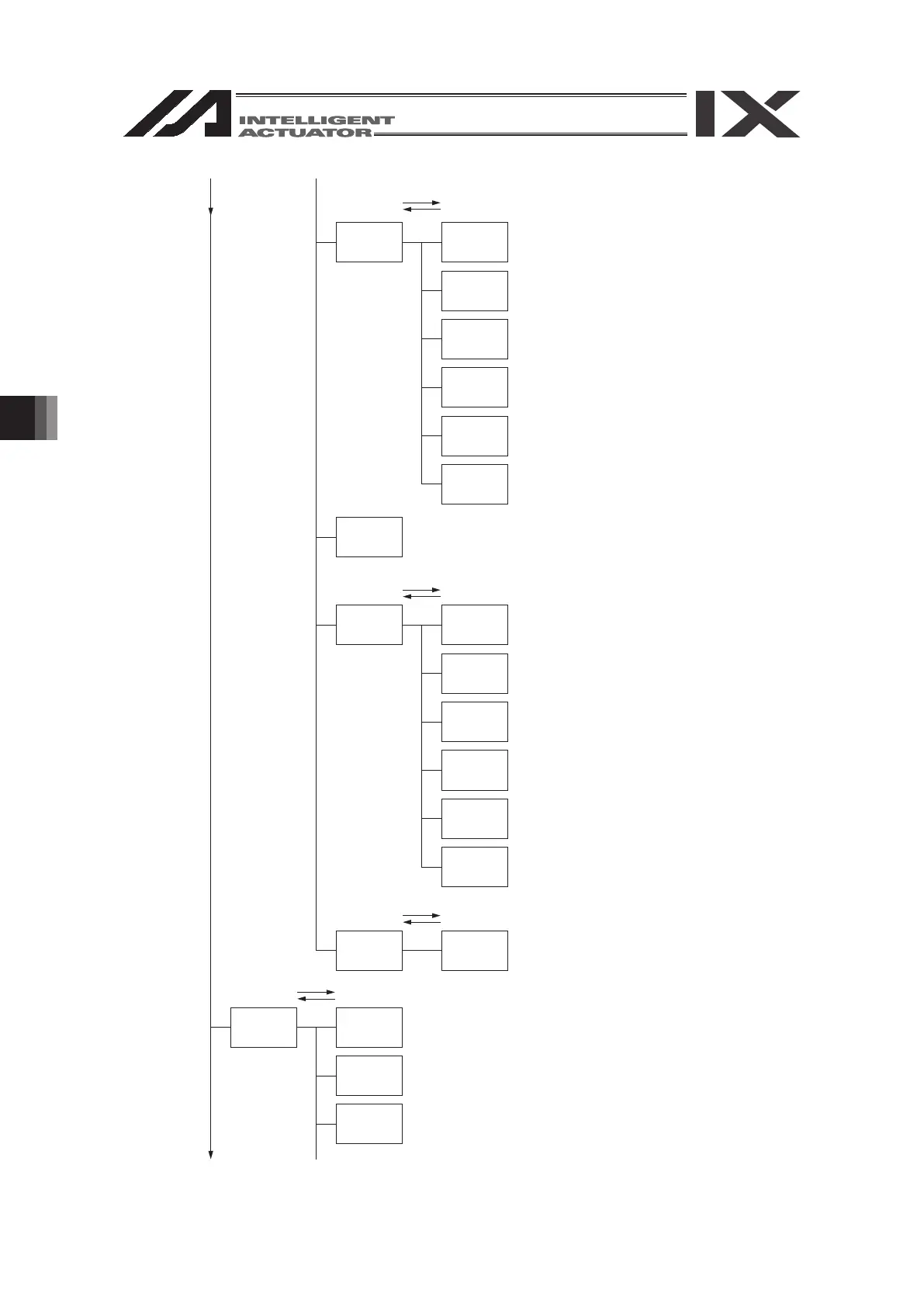

6. Mode Transition Diagram
46
Mode
(System
mode)
SSts
(System
status)
ErrL
(Error list)
Err
(System
error)
Sts1
(System
status 1)
Sts2
(System
status 2)
Sts3
(System
status 3)
Sts4
(System
status 4)
Function key
[ESC]
Function key
[ESC]
Main
(CTL main)
Ver
(Version)
Drv
(Driver)
Tp
(Teaching
pendant)
SIO
(Mount SIO)
FPGA
(FPGA)
CTbl
(Control constant
table management
information)
Function key
[ESC]
Flsh
(Write to
Flash ROM)
Ctl
(Controller)
SRst
(Software
reset)
ERst
(Error reset)
Function key
[ESC]
AXIS
(Maintenance
Information)
Mnt I
(for RX/SX, RXD/SXD type only)

IAI SEL Specifications

General

Protection Class	IP20
Communication	RS-232C
Control Method	PTP
Number of Axes	Up to 4 axes
Vibration Resistance	4.9 m/s² (0.5 G)
Humidity	20 to 85% RH (non-condensing)
